Product Details:
|
| Material: | Silicone Rubber | Color: | Grey |
|---|---|---|---|
| Type: | Cable Accessories | Thickness: | Customized |
| Name: | 30KN/M 2 Core Gray Cold Shirnk Cable Termination Kits | Product: | Silicone Rubber Cable Termination |
| Sample Time: | 5-7days | Certificate: | SGS |
| Highlight: | 30KN/M LV Cable Termination Kit,9.0MPa LV Cable Termination Kit,2 core Gray cold shirnk cable Termination |
||
Product name:
30KN/M 2 Core Gray MV Cold Shirnk Cable Termination Kits
Application:
Applicable to the voltage level 12/20kV, 18/20kV single-core, multi-core cross-linked power cable connection, with function of the seal, insulation, stress evacuation. Particularly applicable to petroleum, chemical, and other flammable and explosive places.
10KV 1core series spec and model
| Voltage | Model | Suitable cable section area(mm²) | Cable core insulation OD(mm²) |
|
12/20KV 1core indoor/outdoor terminators (N/W) |
LSN/W/J-1/1 | 35~70 | 19.3~22.1 |
| LSN/W/J-1/2 | 95~185 | 23.7~28.4 | |
| LSN/W/J-1/3 | 240~400 | 30.7~35.6 | |
| LSN/W/J-1/4 | 500~800 |
10KV 3 cores series spec and model
| Voltage | Model | Suitable cable section area(mm²) | Cable core insulation OD(mm²) |
|
12/20KV 3cores indoor/outdoor terminators (N/W) |
LSN/W/J-3/1 | 35~70 | 19.3~22.1 |
| LSN/W/J-3/2 | 95~185 | 23.7~28.4 | |
| LSN/W/J-3/3 | 240~400 | 30.7~35.6 | |
| LSN/W/J-3/4 | 500~800 |
Features:

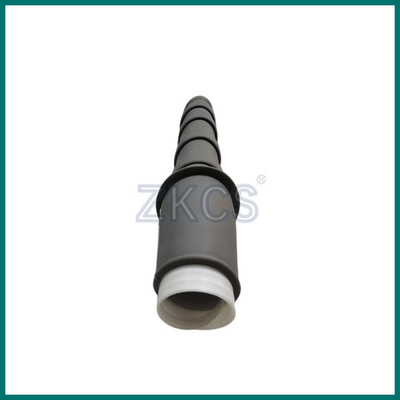

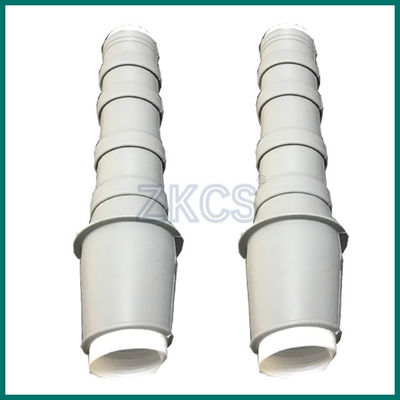

Product pictures for your reference.
Applicable scope
Silicon cold shrink tube: It is widely used for waterproof seal in coaxial cables on telecommunication base stations, N-type connector, 1/2 jumper, Din head and 1/2 jumper connector. It can be used as a waterproof seal for cable television connector, connecting wires and cables, insulation seal for other types of connection.
Rubber Typical Properties
| Properties | Test Method | Typical Value |
| Color | / | Black |
| Ultimate Tensile | ASTM D412-75 | 9.0MPa |
| Ultimate Elongation | ASTM D412-75 | 750% |
| Tear Resistance | ASTM D624C-73 | 30KN/m |
| Fungus Resistance | ASTM G21 28 days exposure | No Growth |
| Dielectric Strength | ASTM D149-75 @1.75 Original | 21KV/m |
| 7days in water at 90℃ | 20.5KV/m | |
| Volume resistance | ASTM D257 | 3.4×1015Ohm.cm |
FAQ
1. Who are we?
We are professional in cold shrink industry. Our products have been exported to America, Australia, Egypt, Taiwan, India, Indonesia, Egypt, Spain, Italy and Germany etc, Europe countries. Currently, we already cooperated many famous companies in electrical and telecommunication industry.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
cold shrink series sealing products, including customized processing machines and products kits, for examples: processing winding and expanding machines, spiraling strip/tube supporting material, EPDM cold shrink tube and silicone cable accessories kit in telecommunication and electrical power industry.
4. Why should you buy from us not from other suppliers?
Years focus on telecom and power infrastructure material, with experienced engineer and workers, with turnkey solution for cold shrink line to solve all your problem in this industry with competitive price.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW standard international terms and welcome commercial terms discussion;
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow;
Language: English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Shipment: express, sea and air shipping.
Contact Person: Mr. Richard Lee
Tel: +8618627678155
