Product Details:
|
| Material: | Silicone Rubber | Width: | 50mm |
|---|---|---|---|
| Length: | 5m | Thickness: | 0.8mm |
| Color: | Red | Type: | Self-fusing |
| Temperature: | 180°C | Application: | Cable Insulation |
| Highlight: | Self Fusing Silicone Rubber Electrical Tape,Cable Insulation Protection Rubber Electrical Tape,Good insulation silicoen tapes |
||
Product name:

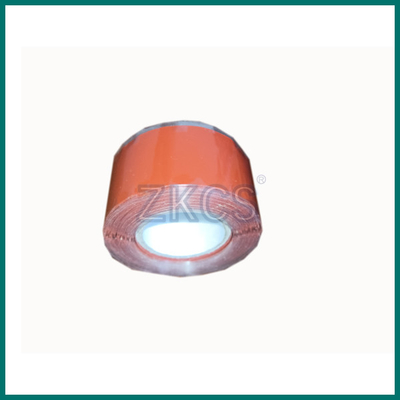

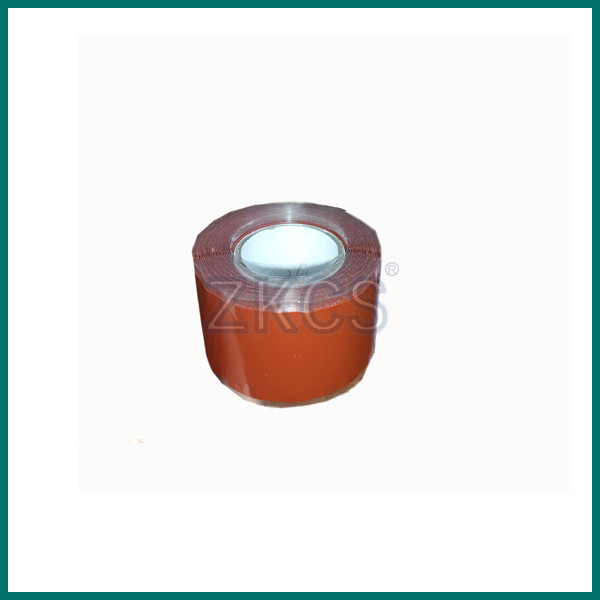

Red Heat Resistant Silicone Rubber Electrical Tape For Cable Insulation Protection
| Product name |
Length (±0.05)M |
Width (±1.5)mm |
Thickness (±0.05)mm |
Parameters |
| Heat Resistant Silicone Rubber Electrical Tape | 5 | 50 | 0.5 | See below chart |
| Heat Resistant Silicone Rubber Electrical Tape | 5 | 50 | 0.8 | See below chart |
Heat Resistant Silicone Rubber Electrical Tape Technical Parameters:
| No. | Items | Test standard | Unit | Results |
| 1 | Hardness | GB/T 531.1-2008 | Shores A | 50±10 |
| 2 | Tensile strength | GB/T 528-2009 | Mpa | ≥4.5 |
| 3 | Elongation at break | GB/T 528-2009 | % | ≥350 |
| 4 | Dielectric coefficient | GB/T1408.1-2006 | KV/mm | ≥22 |
| 5 | Volume resistivity | GB/T1410-2006 | Ω.cm | ≥1.3*1015 |
| 6 | Self-adhesive | ASTM D2148 | N/cm | >3.5 |
| 7 | Water absorption | % | <0.9 | |
| 8 | density | GB/T 20631.2 | g/cm3 | <1.5 |
| 9 | Flame retardant | grade | UL-94 | V0 |
| 10 | Heat resistant temperature | 180 | ||
| 11 | Withstand voltage | 15KV | ||
| 12 | Color | Red, yellow, green etc |
Silicone Rubber Electrical Tape Features:
1: Have good fire performance, can achieve UL94-V0 flame retardant standard
2: Excellent arc force resistance characteristics
3: Excellent resistance to power leakage tracking features
4: Excellent Ozone resistance characteristics
5: Excellent insulation properties
6: Good sticker make installation easier
7: Can use for a long time in very low temperature, nice low temperature resistance performance
8: Good heat resistance characteristics, can be used in 180℃ for long time use.
9: Excellent weather resistance properties
Application:
| No | Items |
| 1 | Can be used for high voltage cable end with very good resistance function to electricity arc and tracking, suitable for winding on all kinds of power cable insulation materials. |
| 2 | Can be used in insulation protection of electrical cabinets |
| 3 | Can be applied to thermal insulation class H |
| 4 | Can be applied to high temperature resistant cable of flame retardant requirement |
FAQ
1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2. Why should you buy from us not from other suppliers?
Years focus on telecom and power infrastructure material, with experienced engineer and workers, with turnkey solution for cold shrink line to solve all your problem in this industry with competitive price.
3. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW standard international terms and welcome commercial terms discussion;
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow;
Language: English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Shipment: express, sea and air shipping.
