Product Details:
|
| Material: | Silicone | Color: | Black Or Grey |
|---|---|---|---|
| Length: | Customized | Name: | Cold Shrink Tubes |
| Application: | Telecom And Power Electric Industry | Product Name: | Cold Shrink Short Tubes |
| Free Samples: | Yes | Sample Time: | 5-7days |
| Highlight: | Cold Shrink Tube Halogen free,Safe Installation Cold Shrink Short Tubes,Insulation Protection Cold Shrink Tube |
||
Product name:

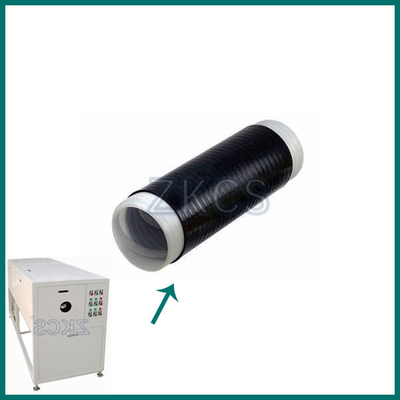

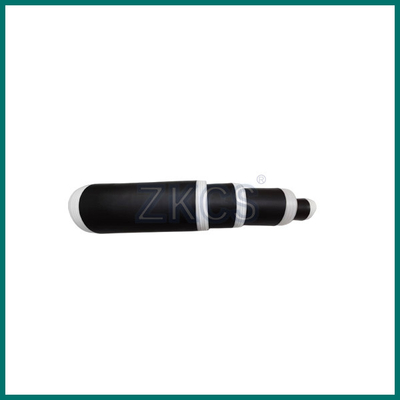

Safe Installation Cold Shrink Short Tubes For Electric Power Industry
Description:
Hengyang ZK industrial has been engaged with cold shrink line for many years,which has safer business
way and good quality of products,we will be your frist choice for cold shrink material supplier.
cold shrink tube is a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre-stretched condition. The core is removed after the tube has been positioned for installation over an in line connection, terminal lug, etc., allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber, which contains no chlorides or sulphurs. Various diameter sizes will cover a range of 1000 volt cables, copper and aluminum conductors.
| CST EPDM Cold Shrink Tubing | ||||
| Features | ||||
| EPDM rubber cold shrink tube | Operating temperature: -40~105ºC | |||
| Good thermal stability | Voltage class: 600~1000V | |||
| Provides flexible, moisture-tight seal | Halogen free, RoHS compliant | |||
| Simple installation, no tools or heat required | ||||
| Seals tight,retains its resiliency and pressure even after a long time aging and exposure | ||||
Applications
Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splices rated to 1000volts
Introduction:
EPDM Cold Shrink Tubes are a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre stretched condition. The core is removed after the tube has been positioned for installation over an in-line connection terminal link allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber which contains no chlorides or sulphurs.
| Material technical parameters: | |||||
| No | Items | Test method | Unit | Test standard | Remarks |
| 1 | Hardness (Shore A) | GB/T 531.1-2009 | Shore A | 43±5 | |
| 2 | Tensile strength | GB/T 528-2009 | Mpa | 8±3 | |
| 3 | Break elongation | GB/T 528-2009 | % | 800±200 | |
| 4 | Tear strength | GB/T 529-2008 | kN/mm | 38±5 | |
| 5 | Volume resistivity | GB/T 2439-2001 | Ω•cm | ≥1013 | |
| 6 | dielectric strength | GB/T 1695-2005 | MV/m | ≥18 | |
| 7 | dielectric Constant(50Hz) | GB/T 1693-2007 | / | ≤8 | |
