Product Details:
|
| Color: | Black | Material: | Silicone Rubber |
|---|---|---|---|
| Thickness: | Customized | Feature: | Middle Voltage Power Cable Jointer |
| Product Name: | Power Electric Cable Jointer Sealing Products Door To Door Service | Keyword: | Power Cable Jointer,middle Voltage Power Cable Jointer |
| Certificate: | ROHS | Sample Time: | 5-7days |
| Highlight: | Middle Voltage Power Electric Cable Jointer,Electric Cable Jointer Sealing Products,22.1 mm² Electric Cable Jointer |
||

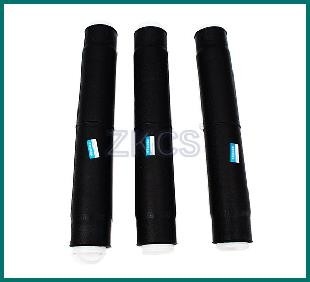

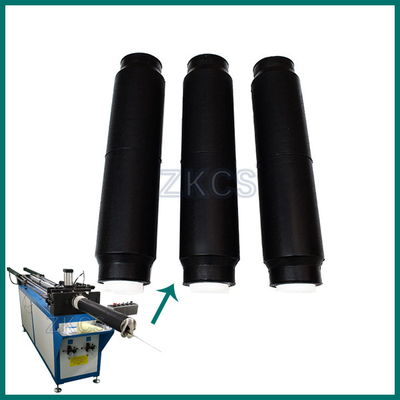

Applicable to the voltage level 12/20kV, 18/20kV single-core, multi-core cross-linked power cable connection, with function of the seal, insulation, stress evacuation. Particularly applicable to petroleum, chemical, mining and other flammable and explosive places.
Features:
1. Suitable for connection seals of different diameters
2. Strong resilience, long-lasting radial pressure, long-term moisture resistance, excellent water resistance
3. Weather resistance, exposure to sunlight, ozone aging resistance, UV resistance, salt spray corrosion resistance
4. Excellent tear strength. After cutting a small opening with a knife, the cutting will not continue to expand.
5. Easy to install, no need for heating or special tools, no need for hot melt adhesive or tape to strengthen the joint
6. Standard color: Black
35KV 1core series spec and model
| Voltage | Model | Suitable cable section area(mm²) | Cable core insulation OD(mm²) |
| 12/20KV 1 core middle connector(J) | LSN/W/J-1/1 | 35~70 | 19.3~22.1 |
| LSN/W/J-1/2 | 95~185 | 23.7~28.4 | |
| LSN/W/J-1/3 | 240~400 | 30.7~35.6 | |
| LSN/W/J-1/4 | 500~800 |
35KV 3 cores series spec and model
| Voltage | Model | Suitable cable section area(mm²) | Cable core insulation OD(mm²) |
| 12/20KV 3cores middle connector(J) | LSN/W/J-3/1 | 35~70 | 19.3~22.1 |
| LSN/W/J-3/2 | 95~185 | 23.7~28.4 | |
| LSN/W/J-3/3 | 240~400 | 30.7~35.6 | |
| LSN/W/J-3/4 | 500~800 |
Features:
FAQ
1. How about the MOQ ?
500 SETS
2. What effects the quoted price for tubing?
Specification (size)
3. Do you accepted sample orders?
yes
4. Delivery time?
Sample lead-time: 3-5 days
Delivery lead-time: 2 weeks
5. Payment terms?
Payment by T/T or on online order
100% payment for sample orders
30% deposit and 70% balance before shipment
6. Delivery ways ?
FedEx, DHL,UPS, TNT door-to-door service, By air, sea
