Product Details:
|
| Color: | Black | Material: | Silicone Rubber |
|---|---|---|---|
| Thickness: | Customized | Feature: | Middle Voltage Power Cable Jointer |
| Product Name: | Silicone Cable Joint Power Cable Connection | Keyword: | Power Cable Jointer, |
| Application: | Power Electric | Sample Time: | 5-7 Days |
| Highlight: | Black Insulation Silicone Cable Joint,20KV Silicone Cable Joint,Black Silicone power cable jointer |
||
Application
Applicable to the voltage level 12/20kV, 18/20kV single-core, multi-core cross-linked power cable connection, with function of the seal, insulation, stress evacuation. Particularly applicable to petroleum, chemical, mining and other flammable and explosive places.
Features
Cold shrink joints do not require"hot -working"techniques associated with heat shrink cable joints-specified for use in potenitally explosive atmospheres ,For the connection of MV HV cables in electrical equipment
1.Wide application range covering several cable cross sectional areas from 50-500SQM
2.Solderless earth connection by means of coppers screen sleeve and constant force spring.
3:No special tools needed during splice installation
35KV 1core series spec and model
| Voltage | Model | Suitable cable section area(mm²) | Cable core insulation OD(mm²) |
| 12/20KV 1 core middle connector(J) | LSN/W/J-1/1 | 35~70 | 19.3~22.1 |
| LSN/W/J-1/2 | 95~185 | 23.7~28.4 | |
| LSN/W/J-1/3 | 240~400 | 30.7~35.6 | |
| LSN/W/J-1/4 | 500~800 |
35KV 3 cores series spec and model
| Voltage | Model | Suitable cable section area(mm²) | Cable core insulation OD(mm²) |
| 12/20KV 3cores middle connector(J) | LSN/W/J-3/1 | 35~70 | 19.3~22.1 |
| LSN/W/J-3/2 | 95~185 | 23.7~28.4 | |
| LSN/W/J-3/3 | 240~400 | 30.7~35.6 | |
| LSN/W/J-3/4 | 500~800 |

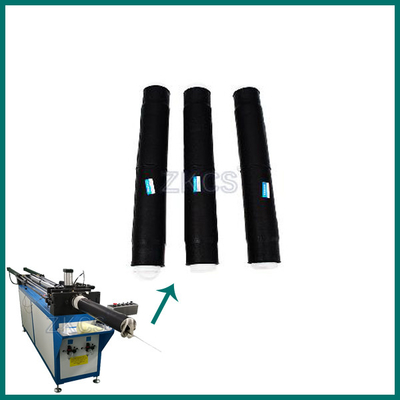

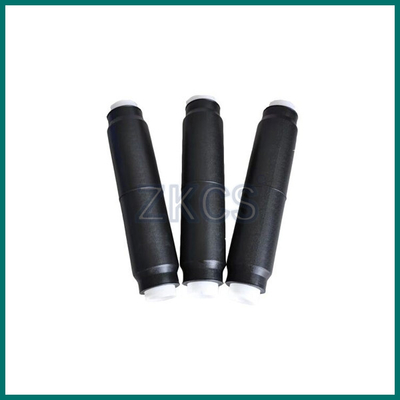

Picture for your reference
