Product Details:
|
Material: | EPDM | Color: | Black |
---|---|---|---|
Certification: | ROHS | Size: | Customized |
Application: | Telecom Or Power Electrial Industry | Certificate: | SGS |
Sample Time: | 5-7days | Product Name: | Cold Shrinkable Sleeve For Antena Protection Sleeve |
Highlight: | Alkali Resistant Cold Shrinkable Sleeve,Acid Resistant Cold Shrinkable Sleeve,Telecom Industry Cold Shrink Sleeve |
Product name:
Resist Acid And AlkaliCold Shrinkable Sleeve For Antena Protection Sleeve
EPDM Cold Shrink Tube EPDM Cold Shrink Tubes are a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre stretched condition. The core is removed after the tube has been positioned for installation over an in-line connection terminal link allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber which contains no chlorides or sulphurs.
Properties Advantage
Applications
◆ Protection and repair for outer sheath of high voltage cable joint;
◆ Fire protection of cables and connectors;
◆For all base materials that need to be insulated against fire;

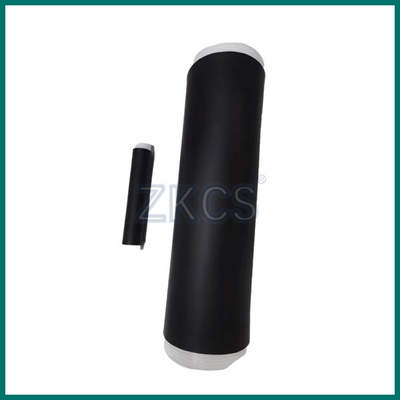

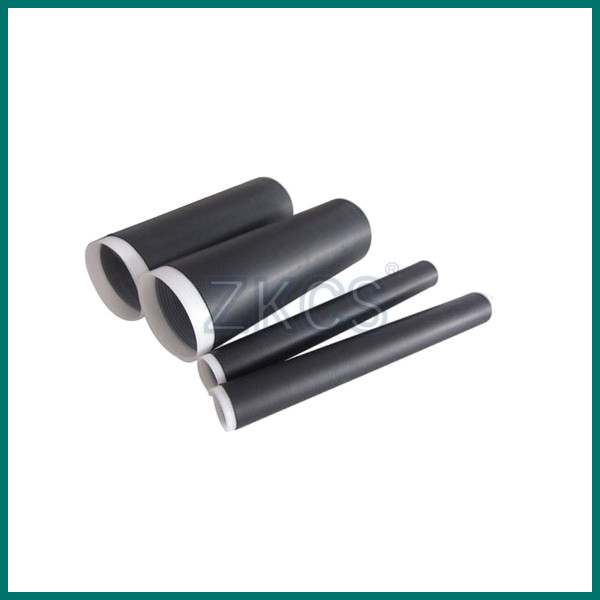

Product picture for your reference.
Introduction:
EPDM cold shrink tube: applied in electrical power industry, telecommunication industry or other tool product handle, eg. bicycle handle etc. With it’s good performance: water-proof, Acid and alkali resistance, seal, protection sleeve and low voltage seal insulation under 1kv.
Material technical parameters: | |||||
No | Items | Test method | Unit | Test standard | Remarks |
1 | Hardness (Shore A) | GB/T 531.1-2009 | Shore A | 43±5 | |
2 | Tensile strength | GB/T 528-2009 | Mpa | 8±3 | |
3 | Break elongation | GB/T 528-2009 | % | 800±200 | |
4 | Tear strength | GB/T 529-2008 | kN/mm | 38±5 | |
5 | Volume resistivity | GB/T 2439-2001 | Ω•cm | ≥1013 | |
6 | dielectric strength | GB/T 1695-2005 | MV/m | ≥18 | |
7 | dielectric Constant(50Hz) | GB/T 1693-2007 | / | ≤8 | |
