Product Details:
|
| Color: | Black,Grey | Material: | Silicone Rubber |
|---|---|---|---|
| Thickness: | 2.0mm | Type: | Cold Shrink |
| Product Name: | CSilicone Cold Shrink Shielded Connector | Feature: | Waterproof,seal,anti-scratch |
| Keyword: | Cold Shrink Shilded Connector | ||
| Highlight: | Insulating Silicone Cold Shink Tube,Shielded Connector Silicone Cold Shrink Tube,Cold Shrink Tube 2.0 mm |
||
Product name:

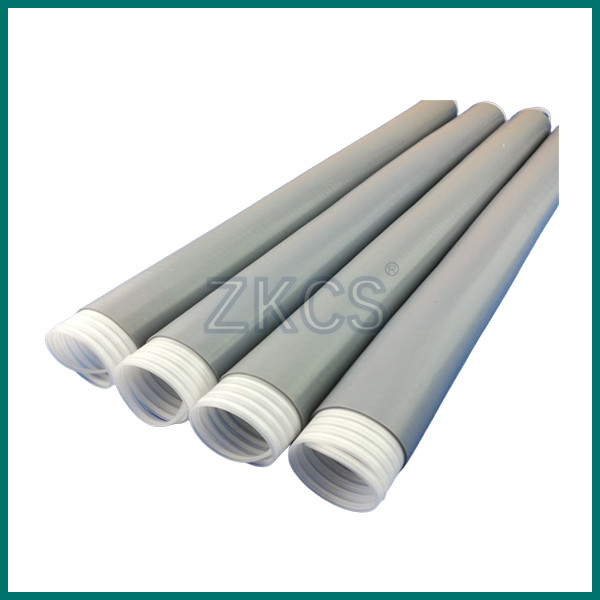

Factory Direct Sell Silicone Cold Shrink Shielded Connector Insulating Tube
Description
Cold shrink tube has excellent weather resistance, acid, and alkali resistance, and achieves the effect of sealing with the breath. It’s an ideal sealing product for communication cables, coaxial cables, medium and low voltage power cables.
Welcome to inquire our products
Features:
1:Easy installation
2:No torches or heat required.
3:UV aging and long term tight sealing,strong resilicence.
4:Good tracking resistance and electric corrosive resistance.
5:Excellent wet electrical properties.
Rubber Parameters
| Properties | Test Method | Typical Value |
| Color | / | Light grey |
| Ultimate Tensile | ASTM D412-75 | 9.0MPa |
| Ultimate Elongation | ASTM D412-75 | 750% |
| Tear Resistance | ASTM D624C-73 | 30KN/m |
| Fungus Resistance | ASTM G21 28 days exposure | No Growth |
| Dielectric Strength | ASTM D149-75 @1.75 Original | 21KV/m |
| 7days in water at 90℃ | 20.5KV/m | |
| Volume resistance | ASTM D257 | 3.4×1015Ohm.cm |
All values are averages and are not intended for specification purposes.

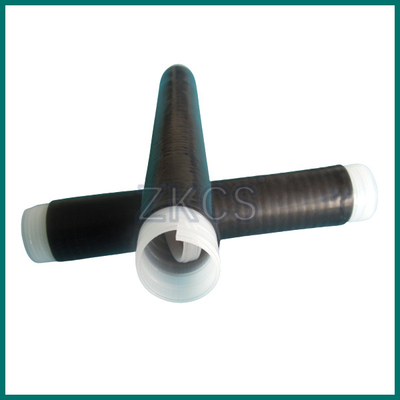

Applicable reference pics
