Product Details:
|
Material: | Silicone | Color: | Black Or Grey |
---|---|---|---|
Length: | Customized | Name: | Cold Shrink Tube |
Application: | Insulation Protection | Product Name: | Grey Cold Shrink Sleeve For Antenna |
Packing: | Carton | Free Samples: | Yes |
Highlight: | Antenna Cold Shrink Sleeve,Cold Shrink Sleeve ROHS,Grey Silicone Cold Shrink Tube |
Product name:
Good Product UV Ageing Easy To Apply Grey Cold Shrink Sleeve For Antenna
Description:
inCold shrink tubing is tubing that shrinks in normal temperatures, so there is no need to heat the tubing to shrink it. It’s supplied on a removable core in a pre-stretched shape. The inner core is removed during installation, allowing the tubing to narrow down around the cables, allowing a tight and compact installation. by an inn
s
Applications
Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splices rated to 1000volts

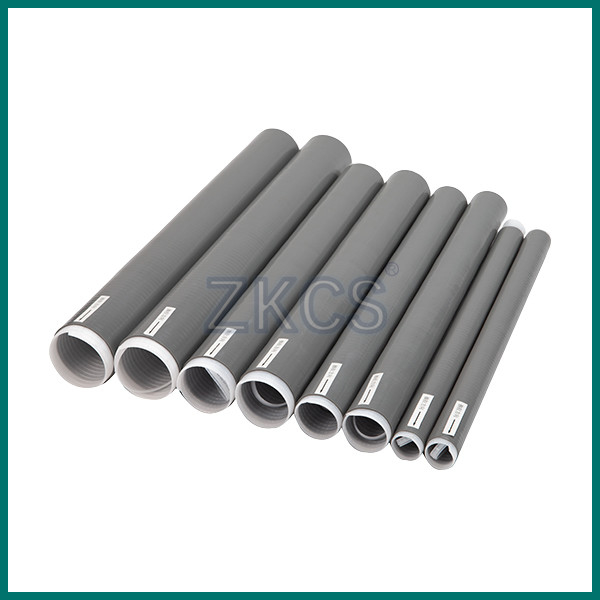

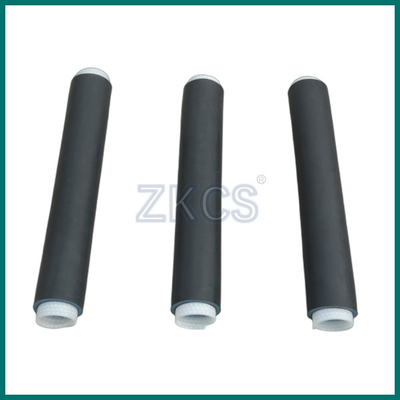

Picture for your reference.
Introduction:
EPDM Cold Shrink Tubes are a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre stretched condition. The core is removed after the tube has been positioned for installation over an in-line connection terminal link allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber which contains no chlorides or sulphurs.
Material technical parameters: | |||||
No | Items | Test method | Unit | Test standard | Remarks |
1 | Hardness (Shore A) | GB/T 531.1-2009 | Shore A | 43±5 | |
2 | Tensile strength | GB/T 528-2009 | Mpa | 8±3 | |
3 | Break elongation | GB/T 528-2009 | % | 800±200 | |
4 | Tear strength | GB/T 529-2008 | kN/mm | 38±5 | |
5 | Volume resistivity | GB/T 2439-2001 | Ω•cm | ≥1013 | |
6 | dielectric strength | GB/T 1695-2005 | MV/m | ≥18 | |
7 | dielectric Constant(50Hz) | GB/T 1693-2007 | / | ≤8 | |
