Product Details:
|
| Color: | Black,Grey | Material: | Silicone Rubber |
|---|---|---|---|
| Thickness: | 2.0mm | Type: | Cold Shrink |
| Product Name: | Resistance Shrinkage Cold Shrinkable Tube | Feature: | Waterproof,seal,anti-scratch |
| Keyword: | Cold Shrink Tube,silicone Cold Shrink Tube, | ||
| Highlight: | Shrinkage Cold Shrinkable Sleeve Tube,Aging Resistance Cold Shrinkable Sleeve Tube,Silicone Cold Shrinkable Sleeve Tube 2.0mm |
||
Product name:
High Shrinkage And Aging Resistance Shrinkage Cold Shrinkable Tube Sleeve
■Suitable scope
Our silicone rubber cold shrink tube with special appearance. It’s specially designed to improve silicone cold shrink tube’s resistance to puncture and other external damage. It is also for weatherproofing protection on cable connections or joint, mostly applied on cell sites, such as connection between jumper cable and connector (7/16 DIN, N type or 4.3-10 connector) on RF equipment (RRU, Antenna and passive device),
Products feature
1.High shrink ratio in global markt
2.Excellent UV/Ozone resistance base on military technology
3.Advanced compound to ensure high shrink ratio after long time storage
4.All in house production and quality control.
Rubber Parameters
| Properties | Test Method | Typical Value |
| Color | / | Light grey |
| Ultimate Tensile | ASTM D412-75 | 9.0MPa |
| Ultimate Elongation | ASTM D412-75 | 750% |
| Tear Resistance | ASTM D624C-73 | 30KN/m |
| Fungus Resistance | ASTM G21 28 days exposure | No Growth |
| Dielectric Strength | ASTM D149-75 @1.75 Original | 21KV/m |
| 7days in water at 90℃ | 20.5KV/m | |
| Volume resistance | ASTM D257 | 3.4×1015Ohm.cm |
All values are averages and are not intended for specification purposes.

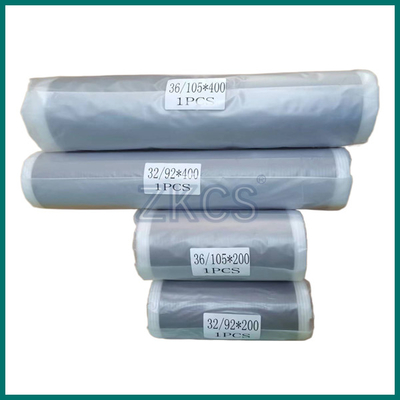

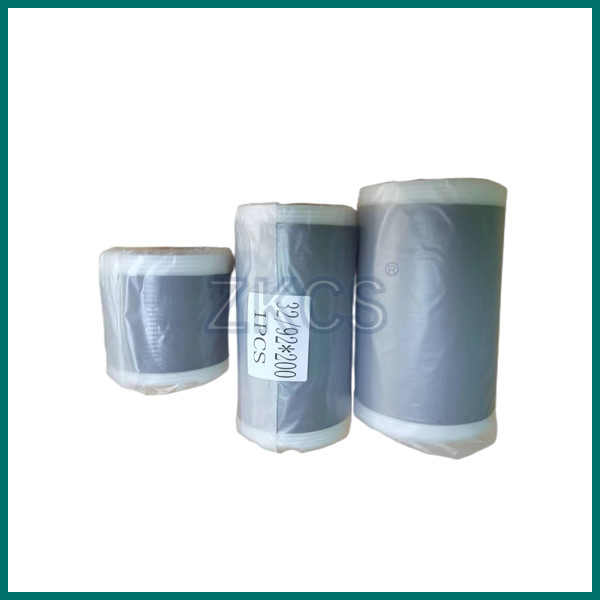

Applicable reference pics
