Product Details:
|
| Color: | Black,Grey | Material: | Silicone Rubber |
|---|---|---|---|
| Thickness: | 3.0mm | Type: | Cold Shrink |
| Product Name: | Connector Insulators, Similar 3M 98 | Feature: | Waterproof,seal,anti-scratch |
| Keyword: | Cold Shrink Tube,silicone Cold Shrink Tube, | ||
| Highlight: | Cold Shrink EPDM Tube Connector Insulators,2.0mm Cold Shrink EPDM Tube,Cold shrink EPDM tube similar 3M 98 |
||
Product name:

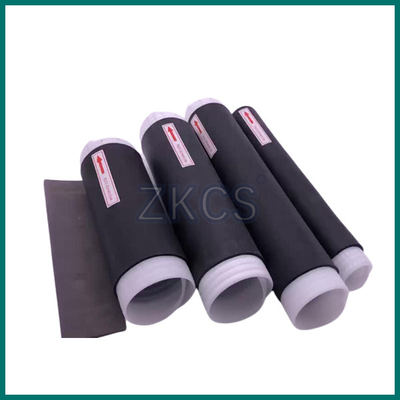

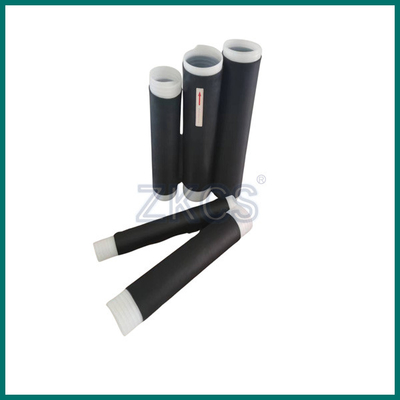

3.0mm Cold Shrink EPDM Tube Connector Insulators Similar 3M 98 Model
Description.
The insulating tube is made of EPDM rubber, which contains no chlorides or sulphurs. Cold shrink tubing is also called no-heat shrink tubing
Product Advantages:
1. Good thermal stability; Excellent wet electrical properties.
2. Seals tight, after prolonged years of ageing and exposure.
3. Improved tough rubber formulation
4. Resist fungus; Resists acids and alkalis; Resists ozone and ultravilet light.
Product Application:
1. Widely used in communication base station for 1/2”cable to device via 7/16 DIN or 4.3-10 connctor.
2. Waterproof and moistureproof TV cable joint sealing .
3. The insulating sealing connecting wire and cable .
4. The insulating sealing protection of other types of connections .
Rubber Parameters
| Properties | Test Method | Typical Value |
| Color | / | Light grey |
| Ultimate Tensile | ASTM D412-75 | 9.0MPa |
| Ultimate Elongation | ASTM D412-75 | 750% |
| Tear Resistance | ASTM D624C-73 | 30KN/m |
| Fungus Resistance | ASTM G21 28 days exposure | No Growth |
| Dielectric Strength | ASTM D149-75 @1.75 Original | 21KV/m |
| 7days in water at 90℃ | 20.5KV/m | |
| Volume resistance | ASTM D257 | 3.4×1015Ohm.cm |
All values are averages and are not intended for specification purposes.
Applicable reference pics
