Product Details:
|
| Color: | Black | Material: | Silicone Rubber |
|---|---|---|---|
| Application: | Power Electric | Samples: | 3-7days |
| Highlight: | cold shrink cable joint,35KV sealing cable joint,cable joint insulation for wire |
||
Product name:

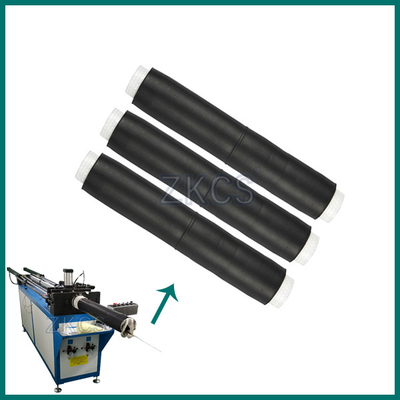

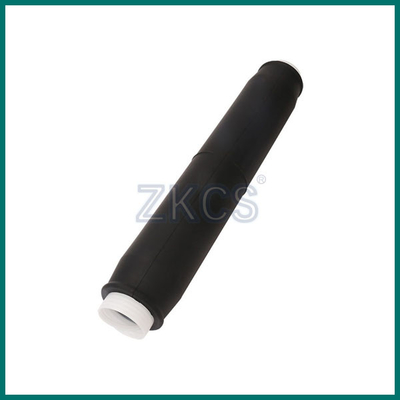

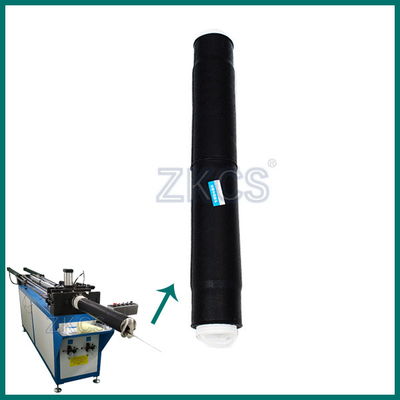

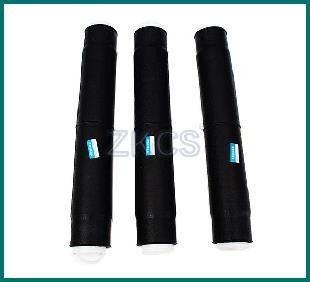

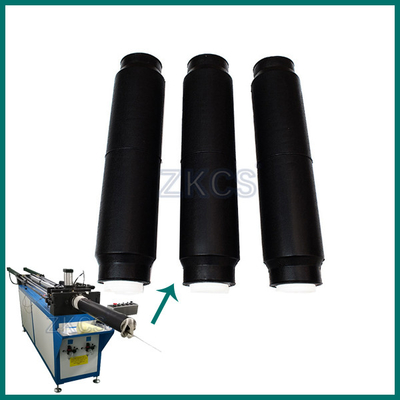

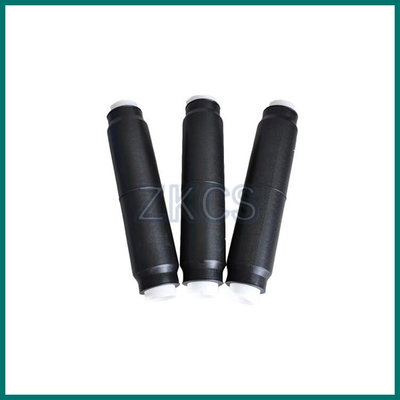

35KV 1core Series Cold Shrink Cable Accessories For Cable Joint Insulation Wire
Whats the difference between cold shrink tube and heat shrink tube ?
35KV 1cores cold shrink cable accessories Cold Shrink technology has replaced traditional heat shrink in many applications, Although they may look similar, Cold Shrink and Heat Shrink tubing have differing key characteristics. They both require different installation techniques, applications and physical properties.One of the main benefits of using Cold Shrink is the ease of application. The tubing is already expanded over a removable plastic core that can be slid over the cable joint or termination, and once the core is removed, the tube moulds around using its own elasticity to create a watertight-seal. This is due to the ‘active memory’ contained within the EPDM rubber or silicone material.
Features
22KV or 35KVcold shrink cable joints are able to ensure quick,easy and safe installation of the splice body ,its easily idenfiable and with lables,cable crosee section ranges,voltage class and cable type.
1.Wide application range covering several cable cross sectional
2.They can be stacked together providing a short parking position on the cable.
3:Meet&exceeds the requirement of the european standard.
4:Thick walled
35KV 1core series spec and model
| Voltage | Model | Suitable cable section area(mm²) | Cable core insulation OD(mm²) |
| 12/20KV 1 core middle connector(J) | LSN/W/J-1/1 | 35~70 | 19.3~22.1 |
| LSN/W/J-1/2 | 95~185 | 23.7~28.4 | |
| LSN/W/J-1/3 | 240~400 | 30.7~35.6 | |
| LSN/W/J-1/4 | 500~800 |
