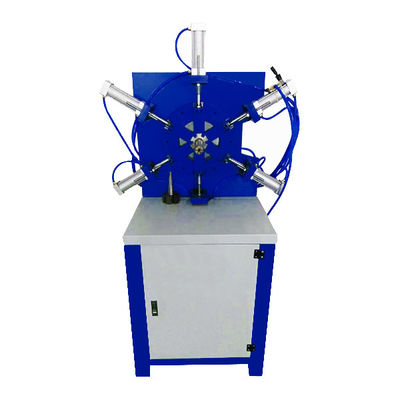

Product Details:
|
| Color: | White And Blue | Moving Stroke: | 150mm |
|---|---|---|---|
| Expanding Type: | Pneumatic | ||
| Highlight: | Pneumatic Expanding,0.6Mpa,6pcs Cylinder tube |
||
| o. | Item | Parameters |
| 01 | Dynamic system | Pneumatic control, not lower than 0.6Mpa |
| 02 | Pneumatic cylinder stroke | 150mm |
| 03 | Expanding stroke | 150mm |
| 04 | Pneumatic cylinder | 6pcs |
| 05 | Pneumatic diameter | 75mm |
|
06 |
After expanding diameter | Min. 16mm |
| Max. 150mm | ||
| 07 | Expanding length |
Silicon lower than 130mm; EPDM lower than 100mm |
| 08 | Machine color |
Main body:blue Fence:white |
| 09 | Fence | Lower closed fence |
| 10 | Accessory | One set expanding mold for small fingers(Ø16mm, length 100mm) |
| 11 | Ref. machine size(L×W×H) | 1000×800×1600mm |
