Product Details:
|
Color: | Black/Grey | Material: | Silicone Rubber |
---|---|---|---|
Thickness: | 3.0mm After Shrink | Type: | Cold Shrink |
Product Name: | Black/Grey Silicone Cold Shrink Tube | Feature: | Waterproof,seal,non Deformation |
Performance: | Water-proof | Certification: | SGS |
Highlight: | silicone cold shrink tube for 1/2'' jumper,waterproof silicone cold shrink tube,coaxial cable silicone shrink tube |

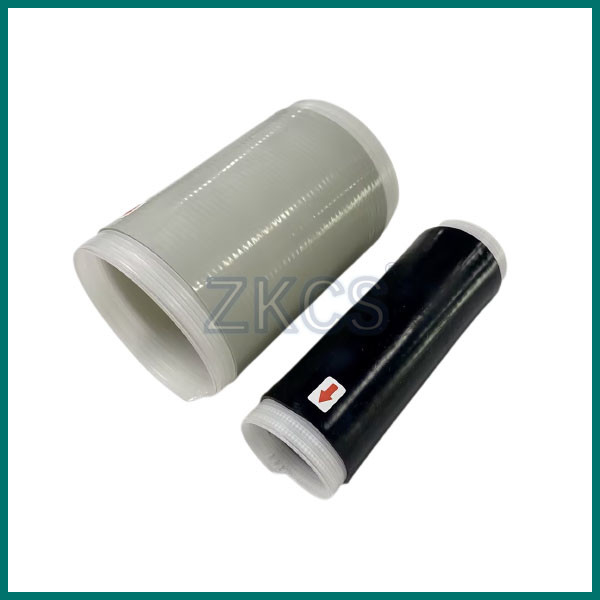

Black / Grey Silicone Cold Shrink Tube For 1/2'' jumper,Din head and jumper connector
■Silicone Cold Shrink Tubing Suitable scope:
Silicone cold shrink tube: applied in telecommunication industry or other electrical cable water seal usage. It is one kind of cold shrink wrap. With it’s good performance: water-proof, Acid and alkali resistance, seal, protection sleeve and low voltage seal insulation under 1kv.
Silicone Cold Shrink Tubing size for reference:
Material | Inner Diameter | Length After shrink |
Cable range Min .dia.(mm)
|
Cable range Max .dia.(mm)
|
Silicone | 28mm | 125mm | 6 | 25 |
Silicone | 25mm | 130mm | 8 | 19 |
Silicone | 40mm | 115mm | 11.9 | 34 |
Silicone | 40mm | 130mm | 11.9 | 34 |
Silicone | 40mm | 140mm | 11.9 | 34 |
Silicone | 45mm | 130mm | 13.5 | 39 |
silicone | 45mm | 150mm | 13.5 | 39 |
Silicone Cold Shrink Tubing parameters:
Properties | Test Method | Typical Value |
Color | / | Light grey |
Ultimate Tensile | ASTM D412-75 | 9.0MPa |
Ultimate Elongation | ASTM D412-75 | 750% |
Tear Resistance | ASTM D624C-73 | 30KN/m |
Fungus Resistance | ASTM G21 28 days exposure | No Growth |
Dielectric Strength | ASTM D149-75 @1.75 Original | 21KV/m |
7days in water at 90℃ | 20.5KV/m | |
Volume resistance | ASTM D257 | 3.4×1015Ohm.cm |
All values are averages and are not intended for specification purposes.
Silicone Cold Shrink Tubing with mastic inside Features:
Silicone Cold Shrink Tubing Inner Mastic Applicable Field Reference :
Silicone Cold Shrink Tubing with Mastic inside operating steps:
