Product Details:
|
| Color: | Black | Material: | EPDM |
|---|---|---|---|
| Diameter: | 80mm Or Customized | Length: | 25'' Or Customized |
| OEM: | EPDM Sleeve | Product Name: | Cold Shrink EPDM End Cap |
| Tensile Strength: | 8Mpa | Break Elongation: | 800% |
| Highlight: | epdm cold shrink end caps,splice tubing,cold shrink cable cap |
||
Description:

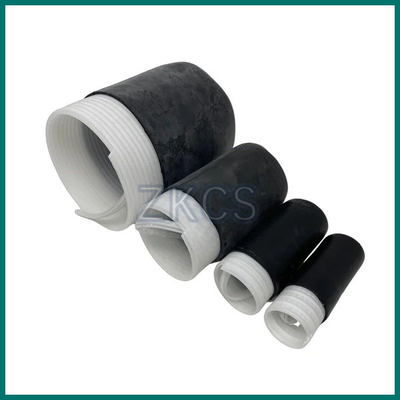

Product name:Resists water EPDM Cold Shrink End Caps provides physical protection for cables and pipes
EPDM Cold End Caps Applicable fields:
Close-ended, EPDM tubular rubber sleeves that are loaded onto a removable core
Resists water, alkalis, acids, abrasion and ozone
Moisture sealing and provides physical protection for cables and pipes
Made of EPDM rubber which contains no chlorides or sulfur
Simple and fast installation without any tools
RoHS 2011/65/EU Compliant
| No | Model | Max. diameter (mm) | Min. diameter (mm) | Thickness After Shrink(±0.2mm) |
| FM-1 | 25×60 | 20.9 | 11.6 | 2.7 |
| FM-2 | 35×75 | 30.1 | 15.9 | 2.7 |
| FM-3 | 55×82 | 49.2 | 26 | 3.0 |
| FM-4 | 90×100 | 84.3 | 43.5 | 3.0 |
| Material technical parameters: | |||||
| No | Items | Test method | Unit | Test standard | Remarks |
| 1 | Hardness (Shore A) | GB/T 531.1-2009 | Shore A | 43±5 | |
| 2 | Tensile strength | GB/T 528-2009 | Mpa | 8±3 | |
| 3 | Break elongation | GB/T 528-2009 | % | 800±200 | |
| 4 | Tear strength | GB/T 529-2008 | kN/mm | 38±5 | |
| 5 | Volume resistivity | GB/T 2439-2001 | Ω•cm | ≥1013 | |
| 6 | dielectric strength | GB/T 1695-2005 | MV/m | ≥18 | |
| 7 | dielectric Constant(50Hz) | GB/T 1693-2007 | / | ≤8 | |
Features:
Simple and fast installation, no tools required.
Accommodates size ranges from 11.6mm – 84.3mm.
Seals tight, retains resiliency and pressure even after prolonged years of ageing and exposure.
Water-resistant.
No mastic or tape required.
No torches or heat required.
Resists fungus.
Resists acids and alkalis.
Resists ozone.
Easily removed.
No training required for installation.
Application reference pic
