Product Details:
|
| Material: | Silicone Rubber | Color: | Black/Grey/customized |
|---|---|---|---|
| Type: | Cold Shrink | Thickness: | 3.0mm |
| Product Name: | High Shrink Ratio Silicon Rubber Cold Shrink Splice Jacket Kit Cold Shrink Tube | Brand: | Customized |
| Highlight: | cold shrink sleeve,rubber shrink tube,cold shrink tubing |
||

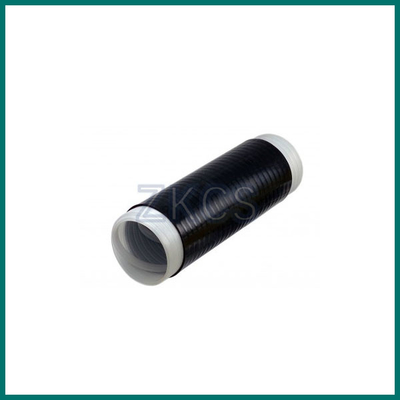

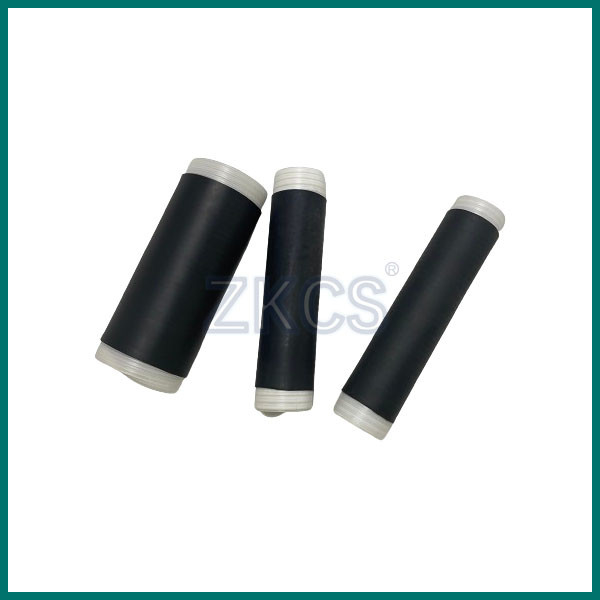

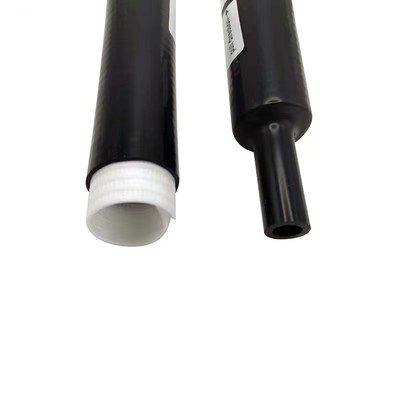

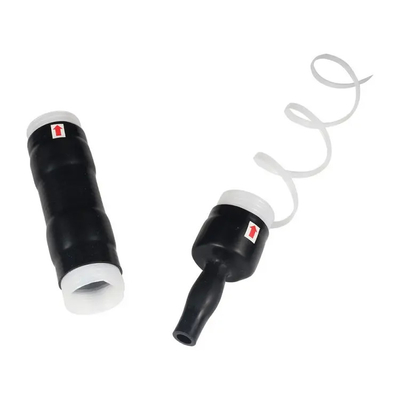

high shrink ratio Silicon Rubber Cold Shrink Splice Jacket Kit Cold Shrink tube
■Suitable scope
Silicone cold shrinkable jacket seals are designed to seal the end of XLP, EPR or similar solid dielectric insulated power cables. The Cold Shrinkable Jacket Seal can be used when installing elbows or other cable accessories.
With it’s good performance: water-proof, Acid and alkali resistance, seal, protection sleeve and low voltage seal insulation under 1kv.
Rubber Parameters
| Items | Type value |
| Temperature Range | -40℃ To +200℃ |
| Tensile Strength / MPa | >8 |
| Elongation at break /% | >800 |
| Shore A hardness | 40-45 |
| Tear Strength N/MM | ≥35 |
| Volume Resistivity /Ω.cm | >1×1013 |
| Sealing protection grade | IP67 |
| Dielectric strength kv/mm | >20 |
| Heat aging | Passed |
| Ozone Resistant | Passed |
| UV-resistance | Passed |
| Low temperature Resistant | -40℃ |
| Flame retardant | V-0, UL94 |
| Plastic Strip core width | 7.0±0.3mm |
| Plastic Strip core ID | 40±2mm |
| Plastic strip core OD | 45±2mm |
| Plastic spiral core thickness | 1.65±0.2mm |
| Sleeve Thickness | 3mm +/-0.2mm |
| Length after shrink | 130mm +/- 5mm |
| Length before shrink | 115+/- 5mm |
| ID after shrink | 10±2mm |
All values are averages and are not intended for specification purposes.
Features:
Applicable reference pics:
FAQ
1. Who are we?
We are professional in cold shrink industry. Our products have been exported to America, Australia, Egypt, Taiwan, India, Indonesia, Egypt, Spain, Italy and Germany etc, Europe countries. Currently, we already cooperated many famous companies in electrical and telecommunication industry.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
cold shrink series sealing products, including customized processing machines and products kits, for examples: processing winding and expanding machines, spiraling strip/tube supporting material, EPDM cold shrink tube and silicone cable accessories kit in telecommunication and electrical power industry.
4. Why should you buy from us not from other suppliers?
Years focus on telecom and power infrastructure material, with experienced engineer and workers, with turnkey solution for cold shrink line to solve all your problem in this industry with competitive price.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW standard international terms and welcome commercial terms discussion;
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow;
Language: English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Shipment: express, sea and air shipping.
Contact Person: Mr. Richard Lee
Tel: +8618627678155
