Product Details:
|
| Color: | Black | Material: | EPDM |
|---|---|---|---|
| Diameter: | 20.9-84.3mm Or Customized | Length: | 60-100mm Or Customized |
| OEM: | EPDM Sleeve | Product Name: | Cold Shrink Rubber EPDM End Cap |
| Tensile Strength: | 8Mpa | Break Elongation: | 800% |
| Highlight: | Cold Shrink Rubber EPDM End Cap,cold shrink end caps,Cold Shrink cable caps |
||
Description:

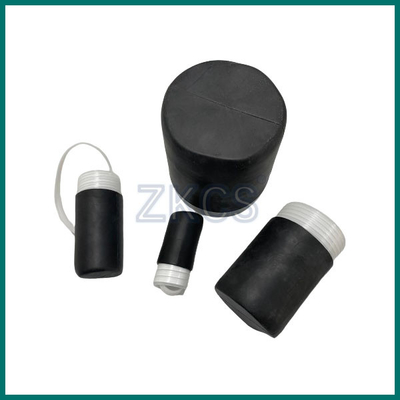

A reliable seal Cold Shrink Rubber EPDM End Cap protects cable ends from environmental damage
Cold Shrink Rubber EPDM End Cap Applicable fields:
Cold shrink rubber end caps are usually used for environmentally seal and mechanically protect exposed cable ends using no tools, mastics or tapes.
Cold shrink EPDM end caps are close-ended, tubular rubber tube that are factory expanded and loaded onto a removable core.
When positioned over the end of a cable, or other cylindrical object, the core is removed to provide a reliable seal that protects your cable ends from environmental damage, like moisture, contamination and corrosion etc.
| No | Model | Max. diameter (mm) | Min. diameter (mm) | Thickness After Shrink(±0.2mm) |
| FM-1 | 25×60 | 20.9 | 11.6 | 2.7 |
| FM-2 | 35×75 | 30.1 | 15.9 | 2.7 |
| FM-3 | 55×82 | 49.2 | 26 | 3.0 |
| FM-4 | 90×100 | 84.3 | 43.5 | 3.0 |
| Material technical parameters: | |||||
| No | Items | Test method | Unit | Test standard | Remarks |
| 1 | Hardness (Shore A) | GB/T 531.1-2009 | Shore A | 43±5 | |
| 2 | Tensile strength | GB/T 528-2009 | Mpa | 8±3 | |
| 3 | Break elongation | GB/T 528-2009 | % | 800±200 | |
| 4 | Tear strength | GB/T 529-2008 | kN/mm | 38±5 | |
| 5 | Volume resistivity | GB/T 2439-2001 | Ω•cm | ≥1013 | |
| 6 | dielectric strength | GB/T 1695-2005 | MV/m | ≥18 | |
| 7 | dielectric Constant(50Hz) | GB/T 1693-2007 | / | ≤8 | |
Features:
Simple and fast installation, no tools required.
Accommodates size ranges from 11.6mm – 84.3mm.
Seals tight, retains resiliency and pressure even after prolonged years of ageing and exposure.
Water-resistant.Seals tight, retains resiliency and pressure even after prolonged years of ageing and exposure.
No mastic or tape required.
No torches or heat required.
Resists acids and alkalis.
Resists ozone.
Easily removed.
No training required for installation
Application reference pic
