Product Details:
|
| Color: | BLACK | Application: | Telecommunication&Electrical Industry |
|---|---|---|---|
| Place Of Origninal: | China | Product Name: | 51mm*1.65mm Rubber Mastic Tape Waterproof Insulation Tape For Underground Cable |
| Size: | 51mm*1.65mm*3m;51mm*1.65mm*1m | Material: | Consists Of Ethylene Propylene Rubber (EPR) And Butyl Mastic Adhesive |
| Highlight: | waterproof mastic tape,highly conformable self-fusing rubber electrical insulating and sealing tape.,Self-sticking UV-resistant |
||
51mm*1.65mm Rubber Mastic tape waterproof insulation tape for underground cable
Application:
*Waterproof at the joints of communication equipment base stations,antennas,peep wires,etc.
*Waterproof sealing protection of overhead insulated wire joints,repair of cable outer sheath.
*The main insulation of the bus bar connection of 35KV and below,waterproof sealing of the ground wire.
*Widely used in telecommunication and electrical power industry.
Features:
Offers resistance to moisture and ultraviolet exposure and is intended for both indoor and weather-exposed outdoor applications
Use as primary electrical insulation for cable and wire connections and vibration padding for motor leads rated up to 1000 V
Thick construction allows quick application build-up and padding over irregular connections
Adhesion and sealing characteristics with copper, aluminum and power cable jacket materials
Technical parameters
| Technical parameters | ||
| Performance | Typical data | Test method |
| Tensile strength | 1.29MPa | ASTM D 4325 |
| Elongation at break | 970% | ASTM D 4325 |
| dielectric strength | 26.5KV/mm | ASTM D 4325 |
| Adhesion(180°,steel plate) | 78.4N/50mm | ASTM D 1000 |
| Heat aging | Pass | ASTM D 4388 |
| Ozone aging | Pass | ASTM D 4388 |
| UV aging | Pass | ASTM D 4388 |
| Xenon lamp | Pass | ASTM D 4388 |
| Product | Model No. | Normal Specification |
|
Rubber Mastic tape waterproof insulation tape ZK2028 |
1 | 51mm*1.65mm*3m |
| 2 | 51mm*1.65mm*1m |
Waterproof Insulation Tape

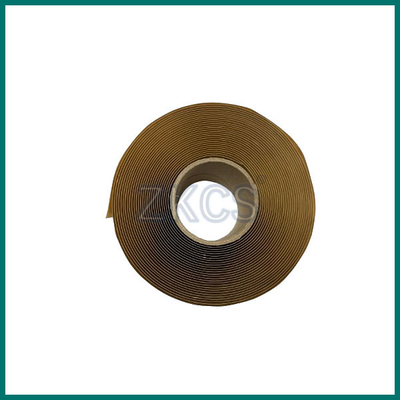

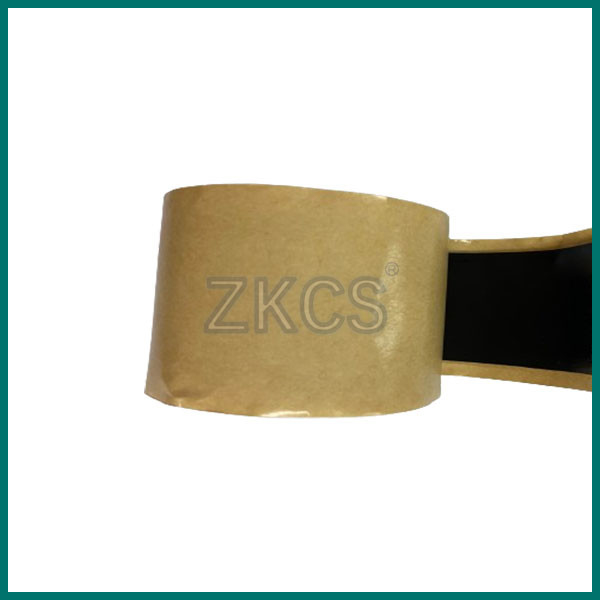

Product pictures for reference.
