Product Details:
|
| Color: | Black Or Printed | Application: | For Jointing And Repairing A Wide Range Of Solid Dielectric Power Cables Up To 69 KV. |
|---|---|---|---|
| Place Of Origninal: | China | Material: | Ethylene Propylene |
| Width Size: | 19;25.4;38;54mm | Thickness: | 0.76mm |
| Highlight: | EPR self almagamating tape,EPR splicing tape,EPR High voltage tape |
||
Product Description:
EPR self almagamating splicing Tape for 69KV high voltage Cable insulation and Repair
a self-amalgamating ethylene propylene rubber (EPR) tape, used on solid dielectric cable for electrical insulation and jacketing in splices up to 69KV and for building stress cones in terminations up to 35KV. The tape comes with a separator that is removed during the taping process. Its 0.76mm thickness and quick amalgamation facilitates a rapid, void free insulation build-up that is electrically stable and moisture proof. ZK2023 is suitable for use with conductors rated at 90℃ with an emergency overload rating of 130℃. The tape is also resistant to corrosion, chemical and ultra violet light
Application:
It is suitable for main insulation and cable joint protection of 69kv and below voltage levels .zk2023 tape combines quickly and can quickly form a void-free,electrically stable sealing layer,which is an ideal choice for electrical insulation and moistureproof and waterproof for telecommunicaiton,mining,electrical industry.
Product Features:
◆ Ethylene propylene rubber tape with a thickness of 0.76mm
◆ It has excellent self-fusing properties
◆ high dielectric strength,and stable chemical properties
◆ Can be used to splice and terminate cable, the emergency overload temperatures can reach 130℃.
◆ Physical and electrical properties are unaffected by the degree of stretch.
◆ A special polyester liner which will not stick to the tape upon unwind.
◆ Operation and installation easily.
◆ Compatible with all solid dielectric cable insulation:
Product Normal Specification:
| Product | Model No. | Normal Specification |
|
ZK2023 LINERED RUBBER (EPR) HIGH VOLTAGE SELF AMALGAMATING TAPES
|
1 | 19mm*0.76mm*9.15m |
| 2 | 25.4mm*0.76mm*5m | |
| 3 | 38mm*0.76mm*9.15m | |
| 4 | 51mm*0.76mm*9.15m |
EPR high voltage insulation tape technical parameters
| Technical parameters | ||
| Performance | Typical data | Test method |
| Tensile strength | 3.83MPa | ASTM D 4325 |
| Elongation at break | 850% | ASTM D 4325 |
| dielectric strength | 35.16KV/mm | ASTM D 4325 |
| volume resistivity | 3.5×1015Ωcm | ASTM D 4325 |
| Heat aging(130℃168h) | Pass | ASTM D 4325 |
| Ozone aging | Pass | ASTM D 4325 |
| UV aging | Pass | ASTM D 4325 |
| Xenon lamp | Pass | ISO 4892-2 |

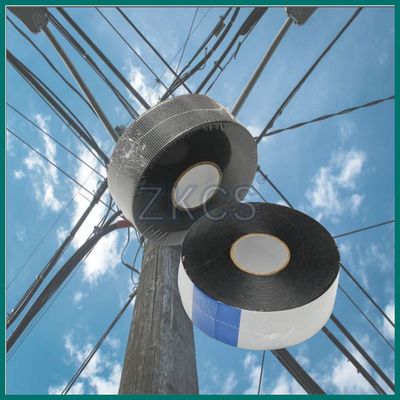

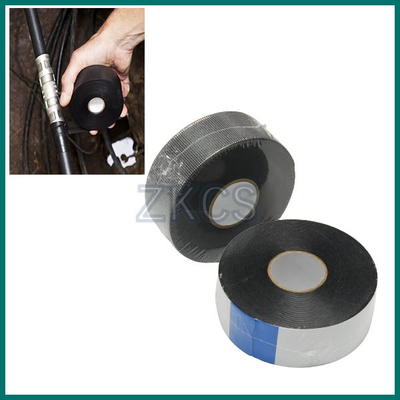

Product pictures for reference.
