Product Details:
|
| Color: | Black Or Customized | Material: | EPDM |
|---|---|---|---|
| Diameter: | 25-105mm | Length: | 150-457mm Or Customized |
| Product Name: | Black 1kv Low Voltage EPDM Silicone Rubber Cold Shrink Tube | ||
| Highlight: | cold shrink tube EPDM hand grip,EPDM cold shrink hand tool tube,anti-slip EPDM hand grip |
||
Description:
1.Protection Function:The wall thickness is 4.0mm, and the elasticity can effectively reduce the friction and impact force between
tools and hands, and protect the hand part most effectively.
2. Oil, acid and alkaline resistance:EPDM rubber is a special rubber with good resistance to oil, acid and alkali corrosion.
3.Good grip:The elastomer of rubber makes the hand stretch well and reduces the feeling of fatigue.
4.Resistance to wear and tear:EPDM material physical characteristics, can ensure the use of wear resistance, puncture resistance;
Features:
*It is more resistant to weather,ultraviolet aging,and does not become brittle after long term use.
*Compared with silicone cold shrink tubes,it is more resistant to punctures ,waterproof ,acid and alkali
*No gaps and tight sealing
*The sealing effect is still excellent.
Application:

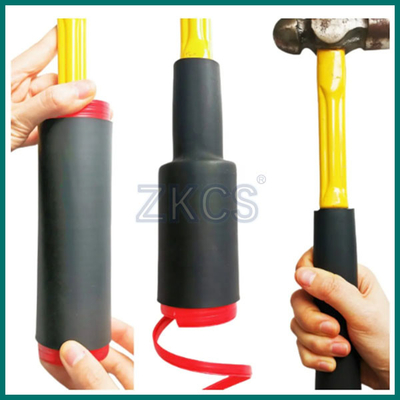

All kinds of labor tools, such as construction, installation, gardening, operation, etc
| Model | Inner Diameter | After shrink length | grip range Min.dia(mm) | grip range Max.dia(mm) |
| EPDM-csp-25-150 | 25mm | 150mm | 10.1 | 20.9 |
| EPDM-csp-25-203 | 25mm | 203mm | 10.1 | 20.9 |
| EPDM-csp-32-279 | 32mm | 279mm | 13 | 27 |
| EPDM-csp-35-279 | 35mm | 279mm | 13.9 | 30.1 |
| EPDM-csp-40-305 | 40mm | 305mm | 17.5 | 33 |
| EPDM-csp-53-152 | 53mm | 152mm | 20 | 46 |
| EPDM-csp-53-305 | 53mm | 305mm | 20 | 46 |
| EPDM-csp-58-250 | 58mm | 250mm | 24 | 49.3 |
| EPDM-csp-58-305 | 58mm | 305mm | 24 | 49.3 |
| EPDM-csp-77-305 | 77mm | 305mm | 32.2 | 67.8 |
| EPDM-csp-77-457 | 77mm | 457mm | 32.2 | 67.8 |
| EPDM-csp-105-229 | 105mm | 229mm | 42.6 | 93.7 |
| EPDM-csp-105-457 | 105mm | 457mm | 42.6 | 93.7 |
Technical data
| No. | Item | Test Method | Test standard | Remarks |
| 1 | Color | Black | ||
| 2 | Hardness(Shore A) | ISO 7619-1:2010 | 43±5Shore A | |
| 3 | Tensile strength | GB/T528-2009 | >8Mpa | |
| 4 | Break elongation | GB/T528-2009 | 800±150% | |
| 5 | Tear strength | GB/T528-2009 | 38±5 KN/mm | |
| 6 | Volume resistivity | / | / | >1*1012ohm-cm |
| 7 | Dieletric constant | / | / | <5.0 |
Black 1kv Low Voltage EPDM Cold Shrink Sleeve for cable sealing in power industy
