Product Details:
|
| Color: | Black Or Customized | Material: | EPDM |
|---|---|---|---|
| Diameter: | 25-105mm | Length: | 150-457mm Or Customized |
| Product Name: | Black 1kv Low Voltage EPDM Silicone Rubber Cold Shrink Tube | ||
| Highlight: | fishing rod skid proof tube,cold shrink non-slip tubing for fishing rod,cold shrink EPDM fishing rod tubing |
||
Description:
1. Protection function: The good silicone elastomer ensures effective protection of the palm, tiger mouth, finger joints, and hand skin when swinging the fishing rod;
2. Alternative: Replace traditional EVA/TPU materials;
3. Installation: It is easier to install than traditional hand glue. One set (insert the grip into the racket handle, position the length properly), two draws (remove the inner support core rope), and three tightens (the silicone grip is tightly attached to the racket handle, with stronger overall adhesion);
4. Durability: Traditional hand glue uses EVA/TPU plastic with lower density, but the disadvantage is that it is not resistant to puncture, water washing, and sweat corrosion. However, our silicone grip is made of high-performance food grade silicone material, which has good puncture, water washing, and sweat corrosion resistance, and can be used more than 10 times as many times as EVA/TPU;
Features:
*It is more resistant to weather,ultraviolet aging,and does not become brittle after long term use.
*Compared with silicone cold shrink tubes,it is more resistant to punctures ,waterproof ,acid and alkali
*No gaps and tight sealing
*The sealing effect is still excellent.

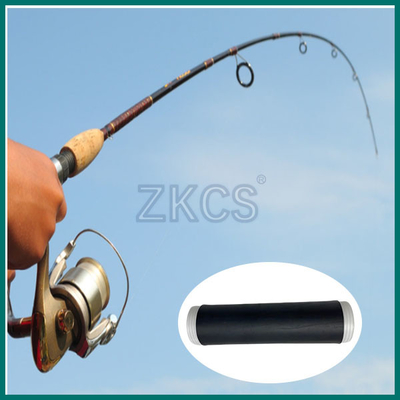

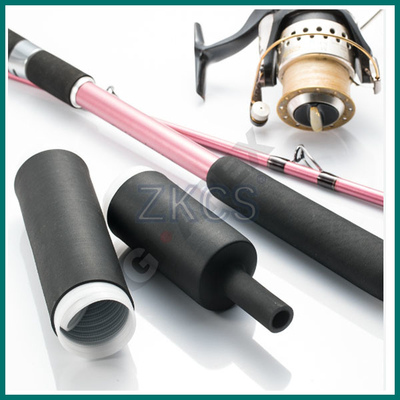

Application:Suitable for all types of fishing rod handles (bamboo, fiberglass (fiberglass material), carbon)
| Model | Inner Diameter | After shrink length | application range Min.dia(mm) | application range Max.dia(mm) |
| EPDM-csp-25-150 | 25mm | 150mm | 10.1 | 20.9 |
| EPDM-csp-25-203 | 25mm | 203mm | 10.1 | 20.9 |
| EPDM-csp-32-279 | 32mm | 279mm | 13 | 27 |
| EPDM-csp-35-279 | 35mm | 279mm | 13.9 | 30.1 |
| EPDM-csp-40-305 | 40mm | 305mm | 17.5 | 33 |
| EPDM-csp-53-152 | 53mm | 152mm | 20 | 46 |
| EPDM-csp-53-305 | 53mm | 305mm | 20 | 46 |
| EPDM-csp-58-250 | 58mm | 250mm | 24 | 49.3 |
| EPDM-csp-58-305 | 58mm | 305mm | 24 | 49.3 |
| EPDM-csp-77-305 | 77mm | 305mm | 32.2 | 67.8 |
| EPDM-csp-77-457 | 77mm | 457mm | 32.2 | 67.8 |
| EPDM-csp-105-229 | 105mm | 229mm | 42.6 | 93.7 |
| EPDM-csp-105-457 | 105mm | 457mm | 42.6 | 93.7 |
Technical data
| No. | Item | Test Method | Test standard | Remarks |
| 1 | Color | Black | ||
| 2 | Hardness(Shore A) | ISO 7619-1:2010 | 43±5Shore A | |
| 3 | Tensile strength | GB/T528-2009 | >8Mpa | |
| 4 | Break elongation | GB/T528-2009 | 800±150% | |
| 5 | Tear strength | GB/T528-2009 | 38±5 KN/mm | |
| 6 | Volume resistivity | / | / | >1*1012ohm-cm |
| 7 | Dieletric constant | / | / | <5.0 |
Black 1kv Low Voltage EPDM Cold Shrink Sleeve for cable sealing in power industy
FAQ
1. Who are we?
We are professional in cold shrink industry. Our products have been exported to America, Australia, Egypt, Taiwan, India, Indonesia, Egypt, Spain, Italy and Germany etc, Europe countries. Currently, we already cooperated many famous companies in electrical and telecommunication industry.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Cold shrink series sealing products, including customized processing machines and products kits, for examples: processing winding and expanding machines, spiraling strip/tube supporting material, EPDM cold shrink tube and silicone cable accessories kit in telecommunication and electrical power industry.
4. Why should you buy from us not from other suppliers?
Years focus on telecom and power infrastructure material, with experienced engineer and workers, with turnkey solution for cold shrink line to solve all your problem in this industry with competitive price.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW standard international terms and welcome commercial terms discussion;
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow;
Language: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian
Shipment: express, sea and air shipping
