Product Details:
|
| Color: | Grey,green,red,yellow,blue | Application: | Electrical Maintenance, Insulation, Sealing |
|---|---|---|---|
| Place Of Origninal: | China | Size: | 50mm*0.5mm*5m |
| Product Name: | Self-Fusing Silicone Rubber Electrical Tape For Protecting High-voltage From Tracking,1 In X 16.4 Ft,Grey/green/red | ||
| Highlight: | Silicone Self-Fusing Tape,High Pressure Plumbing Repair silicone self-fusing tape,waterproof Silicone Self-Fusing Tape |
||
Product name:
Silicone Self-Fusing Tape
Brief introduction:
Silicone self-fusing tape has a wide range of applications and superior performance. It has the characteristics of anti-fouling, anti-hydrochloric acid, anti-ultraviolet, waterproof; oxygen resistance, ozone resistance, cold resistance, heat resistance, high pressure resistance, etc., and can be used in electrical power industries such as cables, irregular conductors, mining, and chemicals. Sealing insulation coating of transformer coil and other electromechanical industry cables and cable accessories and equipment parts.
Product Features:
*Excellent arc resistance
*Excellent tracking resistance
*Excellent ozone resistance
*Excellent insulation properties
*Good self-adhesiveness,easy to install by hand
*It can be used for a long time at extremely low temperature and has excellent low temperature resistance
*very good temperature resistance ,can be used for a long time at 180℃.
*Excellent weather resistance
Product Applicatiom:
1.It can be applied to high-voltage cable heads to play a good role in anti-arc and anti-leakage tracking.
2.It is suitable for wrapping on power cables of various insulation materials .
3.It can be used for insulation protection in electrical cabinets.
4.It can be applied to H-class heat-resistant insulation.
Technical parameters
| Technical Parameters | ||
| Performance | Typical | Test Method |
| Hardness | 50±10Shore A | GB/T 531.1-2008 |
| Tensile strength | ≥6Mpa | GB/T 528-2009 |
| Elongation at break | ≥400% | GB/T 528-2009 |
| Dielectric strength | ≥20kv/mm | GB/T 1695-2005 |
| Volume resistivity | 1.30*1014Ωcm | GB/T 1692-2008 |
| Self-absorption | ＞4.6N/cm | ASTM D2148 |
| Water absorption | ＜0.9% | ASTM D4325 |
| Density | ＜1.3g/cm3 | GB/T 20631.2 |

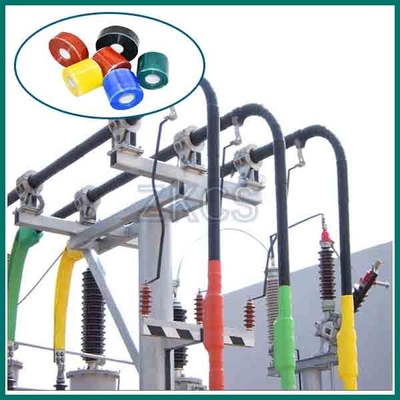

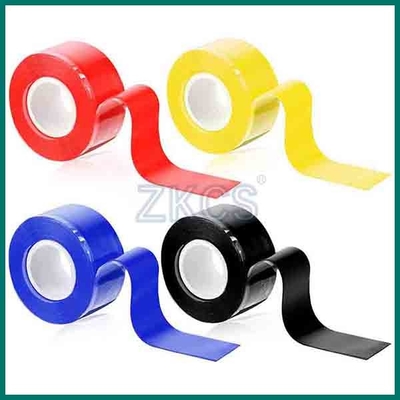

Product pictures for reference.
