Product Details:
|
| Color: | Black/Grey | Material: | Liquid Silicone Rubber |
|---|---|---|---|
| Thickness: | 3.0mm After Shrink | Type: | Cold Shrink |
| Product Name: | Black/Grey Silicone Cold Shrink Tube | Feature: | Waterproof,seal,non Deformation |
| Performance: | Water-proof | Certification: | SGS |
| Highlight: | Silicone Cold Shrink Sleeves,Silicone Cold Shrink Tubes,Silicone Cold Shrink Sleeves |
||

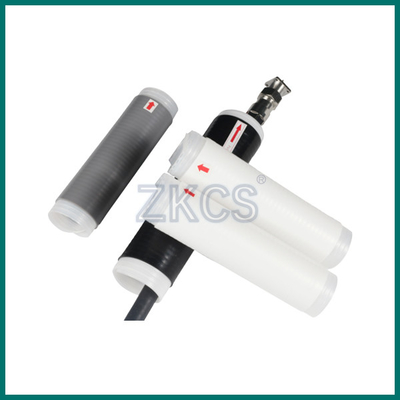

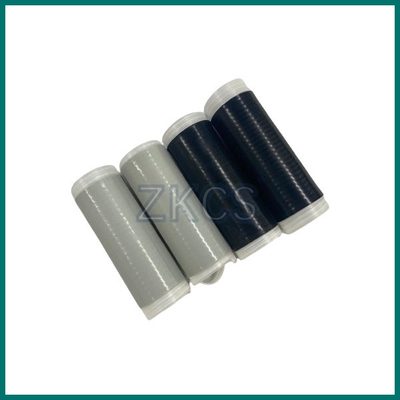

Silicone Cold Shrink Sleeves Sealing For 4G/5G telecommunication Feeder Cable Connections
■Silicone Cold Shrink Sleeves Suitable scope:
Silicone cold shrink tube: applied in telecommunication industry or other electrical cable water seal usage. It is one kind of cold shrink wrap. With it’s good performance: water-proof, Acid and alkali resistance, seal, protection sleeve and low voltage seal insulation under 1kv.
Silicone Cold Shrink Sleeve size for reference:
| Material | Inner Diameter | Length After shrink |
Cable range Min .dia.(mm)
|
Cable range Max .dia.(mm)
|
| Silicone | 28mm | 125mm | 6 | 25 |
| Silicone | 25mm | 130mm | 8 | 19 |
| Silicone | 40mm | 115mm | 11.9 | 34 |
| Silicone | 40mm | 130mm | 11.9 | 34 |
| Silicone | 40mm | 140mm | 11.9 | 34 |
| Silicone | 45mm | 130mm | 13.5 | 39 |
| silicone | 45mm | 150mm | 13.5 | 39 |
Silicone Cold Shrink Sleeve parameters:
| Properties | Test Method | Typical Value |
| Color | / | Light grey |
| Ultimate Tensile | ASTM D412-75 | 9.0MPa |
| Ultimate Elongation | ASTM D412-75 | 750% |
| Tear Resistance | ASTM D624C-73 | 30KN/m |
| Fungus Resistance | ASTM G21 28 days exposure | No Growth |
| Dielectric Strength | ASTM D149-75 @1.75 Original | 21KV/m |
| 7days in water at 90℃ | 20.5KV/m | |
| Volume resistance | ASTM D257 | 3.4×1015Ohm.cm |
All values are averages and are not intended for specification purposes.
Silicone Cold Shrink Sleeve with mastic inside Features:
1. Continuous operating temperature:-60°C~200°C
2. Good low temperature brittleness, can be installed in the Arctic area, no broken;
3. Retains its resiliency and pressure even after prolonged years of ageing and exposure, seals tight against moisture and water
4. Good weather resistance, ozone ageing, ultraviolet and salt mist corrosion resistance, performs stably under long-period exposure to the sun
5. Excellent tear resistance
6. Simple installation, requires no special heating tools , and adhesive to seal the connections
7. Standard color: black
Silicone Cold Shrink Sleeves Applicable Field Reference :
Silicone Cold Shrink Tubing with Mastic inside operating steps:
