Product Details:
|
| Material: | PET | Color: | Black And Grey |
|---|---|---|---|
| Function: | Flame Retardant | Application: | Automobile,cable Management. |
| Product Name: | PET Flexible Expandable Split Sleeve For Railway | Size: | 3mm-70mm |
| Highlight: | PET flexible expandable split,Expandable split sleeve cable accessories,Expandable split sleeve for railway |
||
Product name
Good Flame Retardant PET Flexible Expandable Split Sleeve For Railway Industry
PET polyester expanable sleeving is flame-retardant and halogen-free,PET sleeve is for cable management, it is braided by environment friendly polyester monofil. PET be with good flexibility, fireresistance, abrasive resistance and thermal insulation performance. The sleeves are smooth surface, bright color, various patterns.
Technical data
Fireproofing grade: UL94-V0
Temperature endurance: -50 Celsius ~ +150 Celsius
100% brand new and high quality.
Application:
1. wires harness coating finishing
2. Structured cabling system
3.automotive, railway,aerospace and shipbuilding
Features
1:Flame resistance
2:Excellent flexibility
3.Abrasive resistance
4:Thermal insulation performance

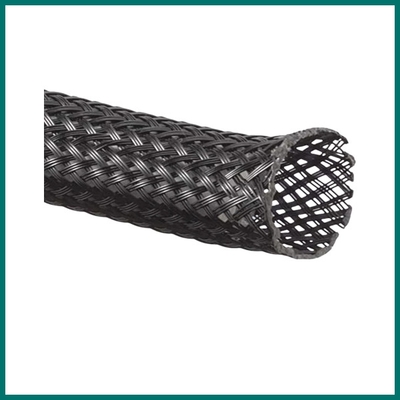

Products picture for reference:
SIze table
| Model No. | Flat diameter | Inch |
Min inner dia.(mm) |
Max inner dia. (mm) |
Packing |
| ZK-PET004 |
4±1 Ф4 |
1/8" | 2 | 7 | 500M/Roll |
| ZK-PET006 |
6±1 Ф6 |
1/4" | 3 | 9 | 500M/Roll |
| ZK-PET008 |
8±2 Ф8 |
5/16" | 5 | 13 | 500M/Roll |
| ZK-PET0010 |
10±2 Ф10 |
3/8" | 6 | 16 | 500M/Roll |
| ZK-PET0012 |
12±2 Ф15 |
1/2" | 7 | 19 | 500M/Roll |
| ZK-PET0015 |
15±2 Ф15 |
5/8" | 9 | 22 | 250M/Roll |
| ZK-PET0018 |
18±2 Ф18 |
3/4" | 12 | 25 | 250M/Roll |
| ZK-PET0025 |
25±3 Ф25 |
1" | 16 | 32 | 250M/Roll |
| ZK-PET0028 |
28±3 Ф28 |
1-1/8" | 18 | 35 | 200M/Roll |
| ZK-PET0030 |
30±3 Ф30 |
1-1/4" | 20 | 39 | 150M/Roll |
| ZK-PET0035 |
35±3 Ф35 |
1-3/8" | 22 | 43 | 100M/Roll |
| ZK-PET0040 |
40±3 Ф40 |
1-1/2" | 25 | 48 | 100M/Roll |
| ZK-PET0050 |
50±5 Ф50 |
1-3/4" | 30 | 60 | 100M/Roll |
| ZK-PET0060 |
60±5 Ф60 |
2" | 40 | 70 | 50M/Roll |
| ZK-PET0070 |
70±5 Ф70 |
2-1/2" | 45 | 80 | 50M/Roll |
