Product Details:
|
| Material: | PP | Color: | Orange |
|---|---|---|---|
| Type: | PP Flame Retardant | Temperature Retardant: | 125 |
| Working Temperature: | -40C-+125C | ROHS: | 2.0 |
| Highlight: | PP Plastic Corrugated Tube,Flame Retardant Plastic Corrugated Tube,Water Against Corrugated Pipe Tube |
||

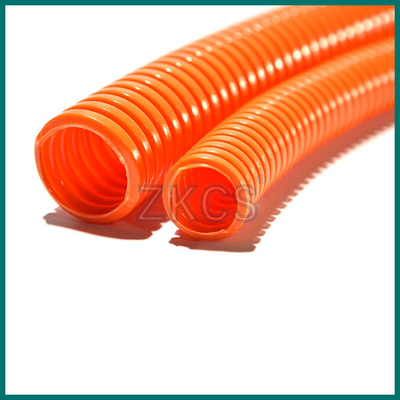

PP Plastic Corrugated Tube 125 Centigrade Flame Retardant For Water Against
■Applicable scope
Corrugated Pipe Tube mainly used for protection cables and wires from external wear and insulation, can also be used for machine tool machinery, automobile wiring, Automatic instruments, motors and motors
Features: good flexibility, glossy surface, chemical resistance.
Specification:
| Model | ID(MM) | OD(MM) | Thickness(MM) | Minimum bending radius(MM) | Packaging standard (M/roll) |
| Φ4.5*7 | 4.6±0.3 | 7.0±0.3 | 0.27±0.05 | 5 | 400 |
| Φ5.2*7.2 | 5.2±0.3 | 7.4±0.3 | 0.27±0.05 | 5 | 400 |
| Φ5.5*8 | 5.5±0.3 | 8.0±0.3 | 0.27±0.05 | 7 | 400 |
| Φ6*9 | 6.0±0.3 | 9.0±0.3 | 0.27±0.05 | 8 | 400 |
| Φ7*10 | 7.0±0.3 | 10.0±0.3 | 0.27±0.05 | 10 | 200 |
| Φ7.5*10.5 | 7.7±0.3 | 10.7±0.3 | 0.27±0.05 | 10 | 200 |
| Φ8.5*11.5 | 8.5±0.3 | 11.7±0.3 | 0.30±0.05 | 15 | 200 |
| Φ9*12 | 9.2±0.3 | 12±0.3 | 0.30±0.05 | 15 | 200 |
| Φ10*13 | 10.2±0.3 | 13.0±0.3 | 0.30±0.05 | 20 | 200 |
| Φ11*14 | 11.2±0.3 | 14.0±0.3 | 0.30±0.05 | 25 | 200 |
| Φ12*15.8 | 12.0±0.3 | 15.8±0.3 | 0.30±0.05 | 30 | 200 |
| Φ12.9*16 | 12.9±0.3 | 15.9±0.3 | 0.30±0.05 | 30 | 200 |
| Φ13*17 | 13.2±0.3 | 17.0±0.3 | 0.35±0.05 | 35 | 200 |
| Φ14.3*18.5 | 14.5±0.4 | 18.5±0.4 | 0.35±0.05 | 40 | 200 |
Application:
FAQ
1. Who are we?
We are professional in cold shrink industry. Our products have been exported to America, Australia, Egypt, Taiwan, India, Indonesia, Egypt, Spain, Italy and Germany etc, Europe countries. Currently, we already cooperated many famous companies in electrical and telecommunication industry.
