Product Details:
|
| Color: | Grey,green,red | Application: | Electrical |
|---|---|---|---|
| Place Of Origninal: | China | ||
| Highlight: | Flame Retardant Self Fusing Tape,Electrical Self Fusing Tape,15KV Self Fusing Tape |
||
Product name:
High Quality Flame retardant low voltage waterproof Self Adhesive Rubber Tape
Flame retardant self -adhesive rubber tape brief introduction:
This is non-slip and wear-resistant and can be wrapped around various irregular tooles ,it can be used in wire winding or wire repair occasions.it ideal for emergency repairs for automotive,plumbing,marine,hose,electrical,indoor and outdoor application
Product Features:
1:Excellent Ozone resistance characteristics
2:Excellent insulation properties
3:Good self-adhesive easy to install
4:Can use for a long time,in very low temperature resistance to low temperature performance
Product Application:
1:it can be used in electricity equipment
arc and tracking,suitable for winding and in all kinds of power cable insulation materials.
2:Can be used in insulation protection of electrical cabinets.
3:Can be applied to telecom base connector
4:Can be applied to high temperature resistant cable of flame retardant requirement
Non flame retardant self-adhesive rubber tape technical parameters
| No. | Items | Test standard | Unit | Results |
| 1 | Hardness | GB/T 531.1-2008 | Shores A | 50±10 |
| 2 | Tensile strength | GB/T 528-2009 | M pa | ≥4.5 |
| 3 | Elongation at break | GB/T 528-2009 | % | ≥350 |
| 4 | Dielectric coefficient | GB/T1408.1-2006 | KV/mm | ≥22 |
| 5 | Volume resistivity | GB/T1410-2006 | Ω.cm | ≥1.3*1015 |
| 6 | Self-adhesive | ASTM D2148 | N/cm | >3.5 |
| 7 | Water absorption | % | <0.9 | |
| 8 | Density | GB/T 20631.2 | g/cm3 | <1.5 |
| 9 | Flame retardant | grade | UL-94 | V0 |
| 10 | Heat resistant temperature | 180 | ||
| 11 | Withstand voltage | 15KV |

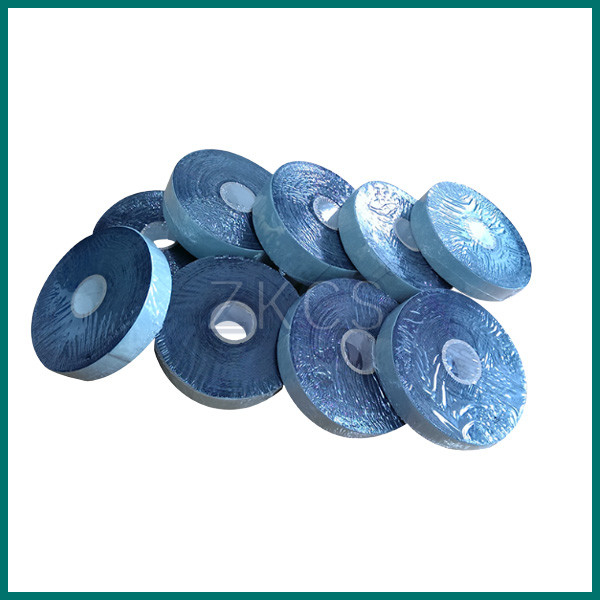

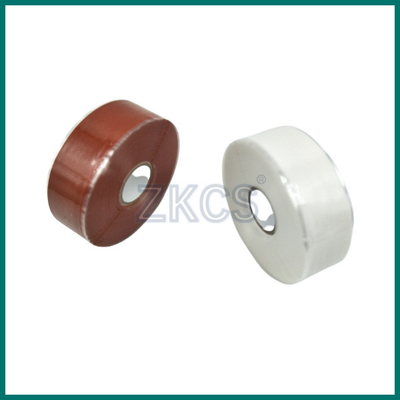

Product pictures for reference.
