Product Details:
|
| Color: | Grey,green,red | Application: | Wire Connecting, High Voltage, Outdoor, High Voltage Cable Joint Kits, Power Plant |
|---|---|---|---|
| Place Of Origninal: | China | Material: | Ethylene Propylene |
| Size: | 4 Different Normal Specification | Brand: | OEM |
| Highlight: | High Voltage Insulation Tape,High Voltage Rubber Splicing Tape,HIGHLY RESISTANT RUBBER SPLICING TAPE |
||
Product name:
EPR High Voltage Insulation Tape For cable joint insulation and protection of 69KV
Product Description:
Which is a kind of Ethylene propylene rubber tape with a thickness of 0.76mm. It has excellent self-fusing properties, high dielectric strength, and stable chemical properties. It is suitable for main insulation and cable joint protection of 69kV and below voltage levels. HZ2023 combines quickly and can quickly form a void-free, electrically stable sealing layer, which is an ideal choice for electrical insulation and moisture-proof and waterproof.Tape that is ideal for insulating splices and terminations in electrical applications and for building stress cones on power cables through 35 KV.
Product Features:
- Self-Amalgamating, Self-Bonding
- Void Free Build Up
- Tight Moisture Resistant Insulation
- Chemical, Ozone, Corona Resistance Properties
- Liner-Less
- Complies with ASTM-D-4388 and HH-I-553C
- Indoor/Outdoor Use
Product Normal Specification:
| Product | Model No. | Normal Specification |
|
ZK2023 High Voltage Insulation Tape |
1 | 19mm*0.76mm*9.15m |
| 2 | 25.4mm*0.76mm*5m | |
| 3 | 38mm*0.76mm*9.15m | |
| 4 | 51mm*0.76mm*9.15m |
Non flame retardant self-adhesive rubber tape technical parameters
| Technical parameters | ||
| Performance | Typical data | Test method |
| Tensile strength | 3.83MPa | ASTM D 4325 |
| Elongation at break | 850% | ASTM D 4325 |
| dielectric strength | 35.16KV/mm | ASTM D 4325 |
| volume resistivity | 3.5×1015Ωcm | ASTM D 4325 |
| Heat aging | Pass | ASTM D 4325 |
| Ozone aging | Pass | ASTM D 4325 |
| UV aging | Pass | ASTM D 4325 |
| Xenon lamp | Pass | ISO 4892-2 |

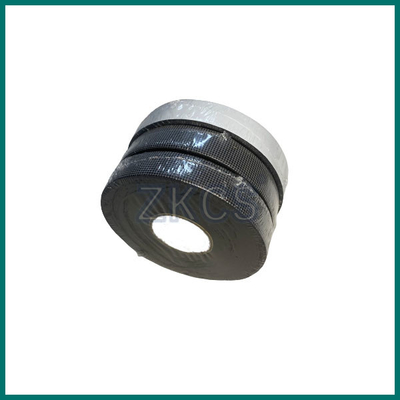

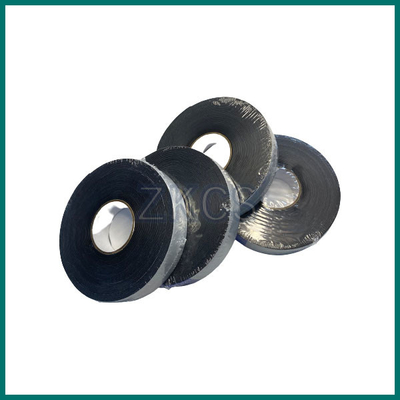

Product pictures for reference.
