Product Details:
|
| Color: | Black Or Printed | Application: | For Jointing And Repairing A Wide Range Of Solid Dielectric Power Cables Up To 69 KV. |
|---|---|---|---|
| Place Of Origninal: | China | Material: | Ethylene Propylene |
| Width Size: | 19;25.4;38;54mm | Thickness: | 0.76mm |
| Highlight: | High Voltage Insulation Tape,EPR High Voltage Insulation Tape,Self-amalgamating EPR tape |
||
Product name:
Self-fusing EPR High Voltage Insulation Tape used to splice and terminate cable
High Voltage Insulation Tape description:
EPR High Voltage Insulation Tape is a highly conformable, self-fusing ethylene propylene
rubber(EPR), high insulting tape. Which is used for main insulation applications of cableand other electrical devices up to69KV.
Product Features:
◆ Electrical insulation jacketing in splices of solid dielectric cable up to 69kV.
◆ Building stress cones in terminations of solid dielectric cable up to 35kV.
◆ Jacketing of indoor terminations.
◆ Moisture sealing electrical connections.
◆ Bus bar insulations and corrosion protection.
◆ End sealing high-voltage cables.
◆ Jacket repair and restoration in all types of cable.
Product Normal Specification:
| Product | Model No. | Normal Specification |
|
ZK2023 High Voltage Insulation Tape |
1 | 19mm*0.76mm*9.15m |
| 2 | 25.4mm*0.76mm*5m | |
| 3 | 38mm*0.76mm*9.15m | |
| 4 | 51mm*0.76mm*9.15m |
EPR high voltage insulation tape technical parameters
| Technical parameters | ||
| Performance | Typical data | Test method |
| Tensile strength | 3.83MPa | ASTM D 4325 |
| Elongation at break | 850% | ASTM D 4325 |
| dielectric strength | 35.16KV/mm | ASTM D 4325 |
| volume resistivity | 3.5×1015Ωcm | ASTM D 4325 |
| Heat aging | Pass | ASTM D 4325 |
| Ozone aging | Pass | ASTM D 4325 |
| UV aging | Pass | ASTM D 4325 |
| Xenon lamp | Pass | ISO 4892-2 |

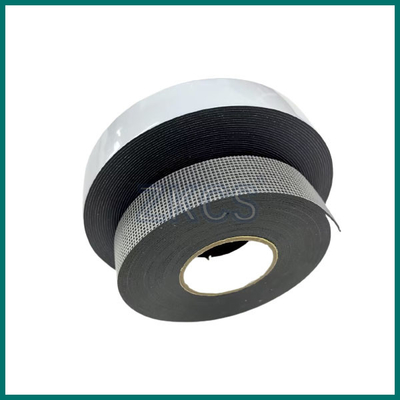

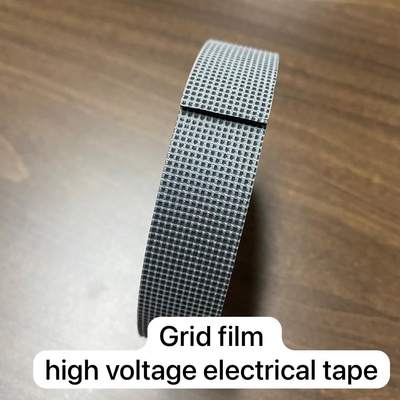

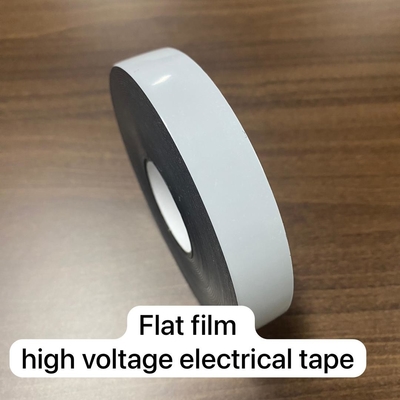

Product pictures for reference.
