Product Details:
|
| Color: | Grey,green,red,yellow | Application: | Electrical,insulation Jacketing |
|---|---|---|---|
| Place Of Origninal: | China | Product Name: | High Volatge Self Fusing Silicone Tape |
| Highlight: | Vinyl mastic tape,Weather resistance Vinyl mastic tape,Vinyl mastic tape for communication tae |
||
Product name:
Vinyl Mastic Black Tape Excellent Insulation Seal For Communication Industry
It is used to replace the combination of HZ2066 waterproof cement + PVC tape, and the on-site construction is simpler and more efficient.
Self-fusing Silicone Tape is a convenient, ready to use tape which can be used to make airtight and waterproof seals on many types
of materials and applications including electrical connections, hoses, and cables and to reduce vibration of hand tools.
Product Features:
1.Excellent heat and mositure resistance.
2.Self fusing tape
3.Tear and abrasion resistant.
4.Non-flammable
5.UV resistant
6:conformable for applications over irregular surface
Product Application:
q:For telecommiunication.
2:protection on CATV componets
3:Insulation of cable and wires
4:Moisture sealing electrical connections
Technical parameters
| Technical parameters | ||
| Performance | Typical data | Test method |
| Peeling force on steel plate | 18.7N/10mm | ASTM D 1000 |
| Peeling force on PE board | 20.2N/10mm | ASTM D 1000 |
| dielectric strength | 21KV/mm | ASTM D 4325 |
| volume resistivity | 1.66×1013Ωcm | ASTM D 1000 |
| Water absorption | ＜0.2% | ASTM D 4325 |
| Product | Model No. | Normal Specification |
|
ZK2901 VM composite Tape |
1 | 38mm*0.635mm*6m |
| 2 | 38mm*0.635mm*2m |

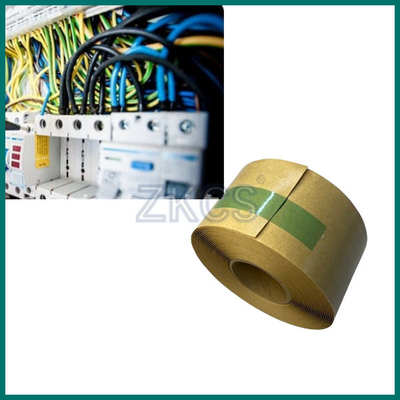

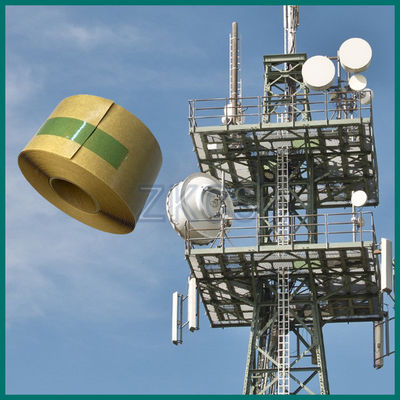

Product pictures for reference.
