Product Details:
|
| Material: | PET | Color: | Black And Grey |
|---|---|---|---|
| Function: | Flame Retardant | Application: | Automible |
| Product Name: | Elastic Braided Cable Sleeve For Railway | Size: | 3mm-70mm |
| Highlight: | Cable sleeve,elastic braided cable sleeve,elastic braided cable sleeve for railway |
||
Product name
High performance PET sleeve elastic braided cable sleeve for railway
PET expandable sleeving fray-resistant covering for wires, cables, and hose assemblies. This sleeving is ideal for field installers and other situations where access to a hot knife is impossible
Technical data
Fireproofing grade: UL94-V0
Temperature endurance: -50 Celsius ~ +150 Celsius
100% brand new and high quality.
Application:
1:For general appliance and electronic
2:power electrical
3:automobile ,railway and airplanes
Features
1:Easy to expanded for its excellent softness.
2:environmentally friendly, non-toxic.
3:Good flexibility, elasticity, thermal insulation and abrasion resistance.
4:Quick and easy installation over large connectors

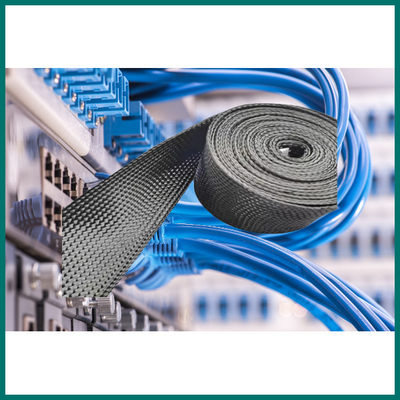

Products picture for reference:
SIze table
| Model No. | Flat diameter | Inch |
Min inner dia.(mm) |
Max inner dia. (mm) |
Packing |
| ZK-PET004 |
4±1 Ф4 |
1/8" | 2 | 7 | 500M/Roll |
| ZK-PET006 |
6±1 Ф6 |
1/4" | 3 | 9 | 500M/Roll |
| ZK-PET008 |
8±2 Ф8 |
5/16" | 5 | 13 | 500M/Roll |
| ZK-PET0010 |
10±2 Ф10 |
3/8" | 6 | 16 | 500M/Roll |
| ZK-PET0012 |
12±2 Ф15 |
1/2" | 7 | 19 | 500M/Roll |
| ZK-PET0015 |
15±2 Ф15 |
5/8" | 9 | 22 | 250M/Roll |
| ZK-PET0018 |
18±2 Ф18 |
3/4" | 12 | 25 | 250M/Roll |
| ZK-PET0025 |
25±3 Ф25 |
1" | 16 | 32 | 250M/Roll |
| ZK-PET0028 |
28±3 Ф28 |
1-1/8" | 18 | 35 | 200M/Roll |
| ZK-PET0030 |
30±3 Ф30 |
1-1/4" | 20 | 39 | 150M/Roll |
| ZK-PET0035 |
35±3 Ф35 |
1-3/8" | 22 | 43 | 100M/Roll |
| ZK-PET0040 |
40±3 Ф40 |
1-1/2" | 25 | 48 | 100M/Roll |
| ZK-PET0050 |
50±5 Ф50 |
1-3/4" | 30 | 60 | 100M/Roll |
| ZK-PET0060 |
60±5 Ф60 |
2" | 40 | 70 | 50M/Roll |
| ZK-PET0070 |
70±5 Ф70 |
2-1/2" | 45 | 80 | 50M/Roll |
